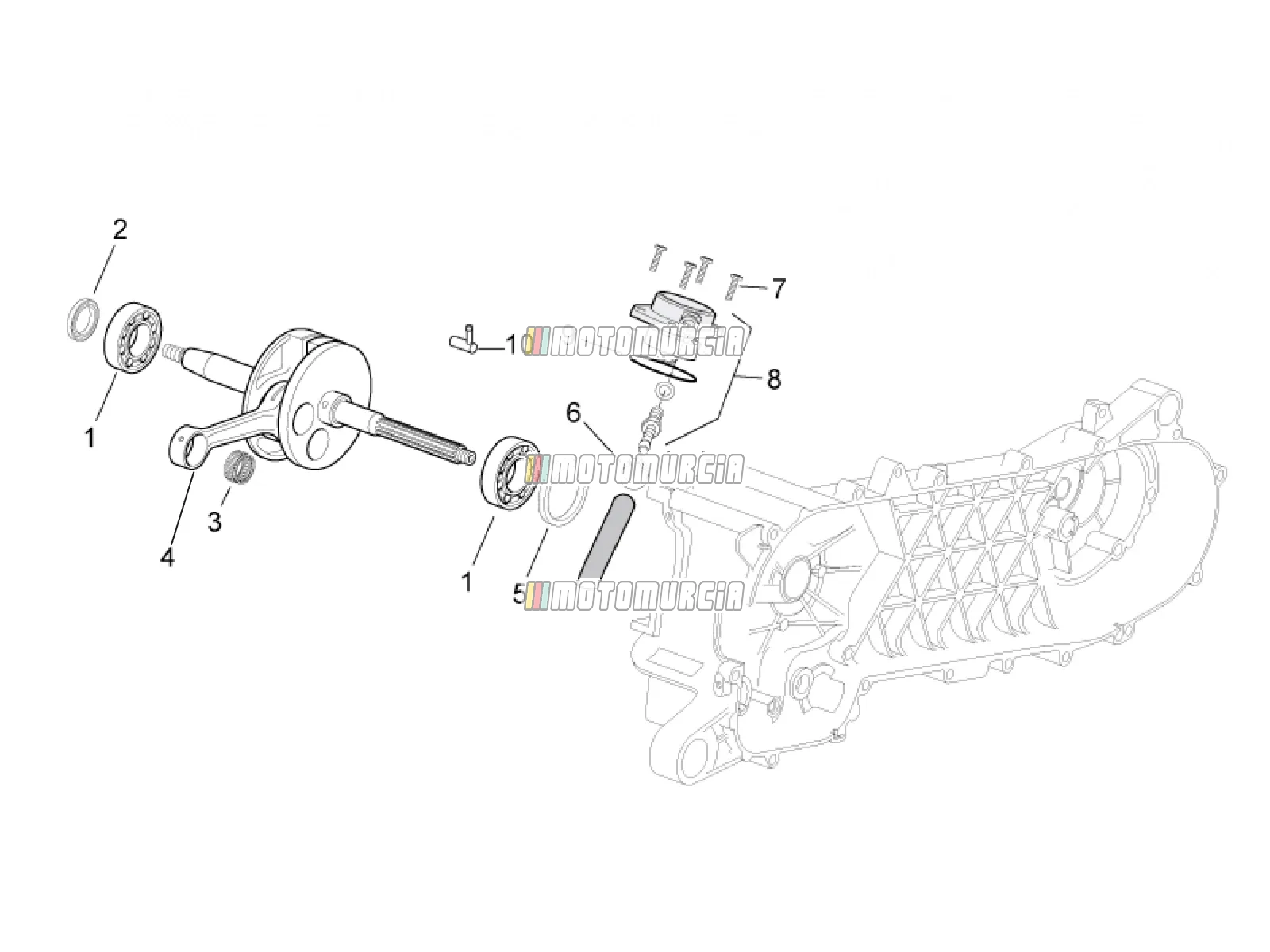

Exploded view — Drive Shaft

Products

1 Crankshaft bearing Available 431125

•

  Crankshaft bearing 20x52x12 mm Piaggio Group · 431125 · Quantity needed: 2 Available

  € 22,78

  Add to cart

2 Flywheel side seal ring Available 482315

•

  Crankshaft seal 18x28x7/7,5 mm Piaggio Group · 482315 Available

  € 10,55

  Add to cart

3 Needle bearing Available 500503

•

  Big end bearing white, Cat. 3, 12x13x16 mm Piaggio Group · 500503 Available

  € 11,60

  Add to cart
•

  Big end bearing yellow, Cat. 4, 12x13x16 mm Piaggio Group · 500504 Available

  € 11,60

  Add to cart
•

  Big end bearing red, Cat. 1, 12x13x16 mm Piaggio Group · 500501 Available

  € 11,51

  Add to cart
•

  Big end bearing blue, Cat. 2, 12x13x16 mm Piaggio Group · 500502 Available

  € 11,60

  Add to cart

4 Crankshaft (IE) 8269406 No longer available

• 8269406 Crankshaft (IE)
  No longer available
•

  Crankshaft Piaggio Group · 8338275 Available

  € 437,05

  Add to cart

5 Gear side seal ring Available 482314

•

  Crankshaft seal 19x30x8 mm Piaggio Group · 482314 Available

  € 9,99

  Add to cart

6 Clamp Available CM001913

•

  Hose Clamp Piaggio Group · CM001913 Available

  € 1,88

  Add to cart

7 Screw Available 015856

•

  Screw M5x21 Piaggio Group · 015856 · Quantity needed: 4 Available

  € 0,99

  Add to cart

8 Compressor Available 826949

•

  Compressor Piaggio Group · 826949 Available

  € 436,89

  Add to cart

9 O-Ring 830585 No longer available

• 830585 O-Ring
  No longer available

10 Oil valve cpl. Available 82768R

•

  Oil Valve Piaggio Group · 82768R Available

  € 24,33

  Add to cart
