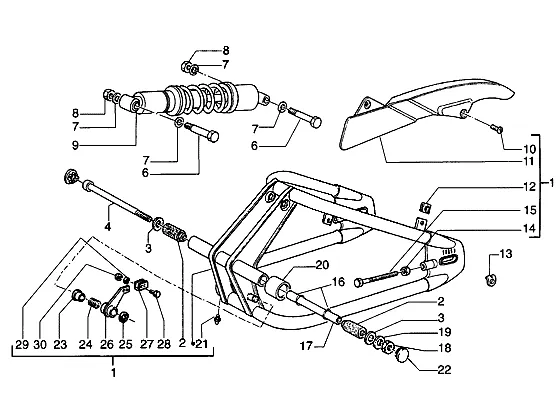

Exploded view — Big Fork

Products

1 Rear swing arm 9516205 No longer available

• 9516205 Rear swing arm
  No longer available

2 Bush 314114 No longer available

• 314114 Bush Quantity needed: 2
  No longer available

3 Ring 400653 No longer available

• 400653 Ring Quantity needed: 2
  No longer available

4 Pin 946036 No longer available

• 946036 Pin
  No longer available

6 Screw 030101 No longer available

• 030101 Screw Quantity needed: 2
  No longer available

7 Washer Available 016626

•

  Washer 10,4x18x2 mm Piaggio Group · 016626 · Quantity needed: 2 Available

  € 1,44

  Add to cart

8 Nut Available 015235

•

  Standard nut Piaggio Group · 015235 · Quantity needed: 2 Available

  € 2,35

  Add to cart

9 Shock absorber 951514 No longer available

• 951514 Shock absorber
  No longer available

10 Screw Available 259348

•

  Oval Head Screw Piaggio Group · 259348 Available

  € 1,08

  Add to cart

11 Chain guard 463524 No longer available

• 463524 Chain guard
  No longer available

12 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 Available

  € 2,04

  Add to cart

13 Plate 463128 No longer available

• 463128 Plate Quantity needed: 2
  No longer available

14 Nut Backorder B011531

•

  Standard nut Piaggio Group · B011531 · Quantity needed: 2 Backorder

  € 2,66

  Add to cart

15 Screw 463569 No longer available

• 463569 Screw Quantity needed: 2
  No longer available

16 O-Ring 006728 No longer available

• 006728 O-Ring Quantity needed: 2
  No longer available

17 Spacer 324074 No longer available

• 324074 Spacer
  No longer available

18 Nut Available 261319

•

  Standard nut M12x1.25 Piaggio Group · 261319 Available

  € 1,88

  Add to cart

19 Washer 709516 No longer available

• 709516 Washer
  No longer available

20 Sliding block 463568 No longer available

• 463568 Sliding block
  No longer available

21 Lubricator 265730 No longer available

• 265730 Lubricator
  No longer available

22 Cover Available 463151

•

  Lid Piaggio Group · 463151 · Quantity needed: 2 Available

  € 11,34

  Add to cart

23 Bushing 464199 No longer available

• 464199 Bushing
  No longer available

24 Chain tight. spring Backorder 464198

•

  Spring Piaggio Group · 464198 Backorder

  € 12,93

  Add to cart

25 Ring Available 005970

•

  Snap-in Ring Piaggio Group · 005970 Available

  € 1,45

  Add to cart

26 Bracket 464195 No longer available

• 464195 Bracket
  No longer available

27 Sliding block 464196 No longer available

• 464196 Sliding block
  No longer available

28 Screw Available 828493

•

  Allen screw Piaggio Group · 828493 · Quantity needed: 2 Available

  € 0,99

  Add to cart

29 Washer Available 003055

•

  Washer 5,4x10x0,8 mm Piaggio Group · 003055 · Quantity needed: 2 Available

  € 1,88

  Add to cart

30 Nut Available 804457

•

  Standard nut Piaggio Group · 804457 · Quantity needed: 2 Available

  € 3,32

  Add to cart
