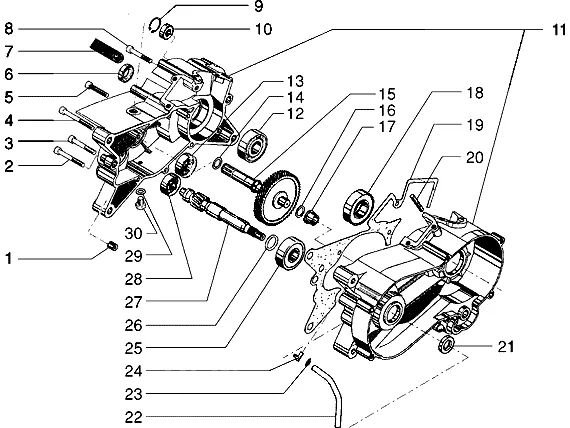

Exploded view — Crankcase

Products

1 Pin 951811 No longer available

• 951811 Pin Quantity needed: 2
  No longer available

2 Screw 951852 No longer available

• 951852 Screw Quantity needed: 2
  No longer available

3 Screw 951866 No longer available

• 951866 Screw Quantity needed: 2
  No longer available

4 Screw 951848 No longer available

• 951848 Screw
  No longer available

5 Screw 951870 No longer available

• 951870 Screw
  No longer available

6 Gasket 951871 No longer available

• 951871 Gasket
  No longer available

7 Spacer (rubber) 951873 No longer available

• 951873 Spacer (rubber)
  No longer available

8 Screw 951851 No longer available

• 951851 Screw
  No longer available

9 Seeger 951875 No longer available

• 951875 Seeger
  No longer available

10 Bearing 951874 No longer available

• 951874 Bearing
  No longer available

11 Crank-case 951806 No longer available

• 951806 Crank-case
  No longer available

12 Bearing 951810 No longer available

• 951810 Bearing
  No longer available

13 Bearing 241894 No longer available

• 241894 Bearing
  No longer available

14 Washer 951863 No longer available

• 951863 Washer
  No longer available

15 Driven shaft 951813 No longer available

• 951813 Driven shaft
  No longer available

16 Washer 951814 No longer available

• 951814 Washer
  No longer available

17 Bushing 951815 No longer available

• 951815 Bushing
  No longer available

18 Bearing 951809 No longer available

• 951809 Bearing
  No longer available

19 Gasket 951808 No longer available

• 951808 Gasket
  No longer available

20 Stud bolt 951807 No longer available

• 951807 Stud bolt Quantity needed: 2
  No longer available

21 Gasket 951825 No longer available

• 951825 Gasket
  No longer available

22 Breather pipe 9421425 No longer available

• 9421425 Breather pipe
  No longer available

23 Clamp 951878 No longer available

• 951878 Clamp Quantity needed: 2
  No longer available

24 Joint 338191 No longer available

• 338191 Joint
  No longer available

25 Bearing 951816 No longer available

• 951816 Bearing
  No longer available

26 Washer 951943 No longer available

• 951943 Washer
  No longer available

27 Primary shaft 951817 No longer available

• 951817 Primary shaft
  No longer available

28 Bearing 951818 No longer available

• 951818 Bearing
  No longer available

29 Gasket 951819 No longer available

• 951819 Gasket
  No longer available

30 Screw 951820 No longer available

• 951820 Screw
  No longer available
