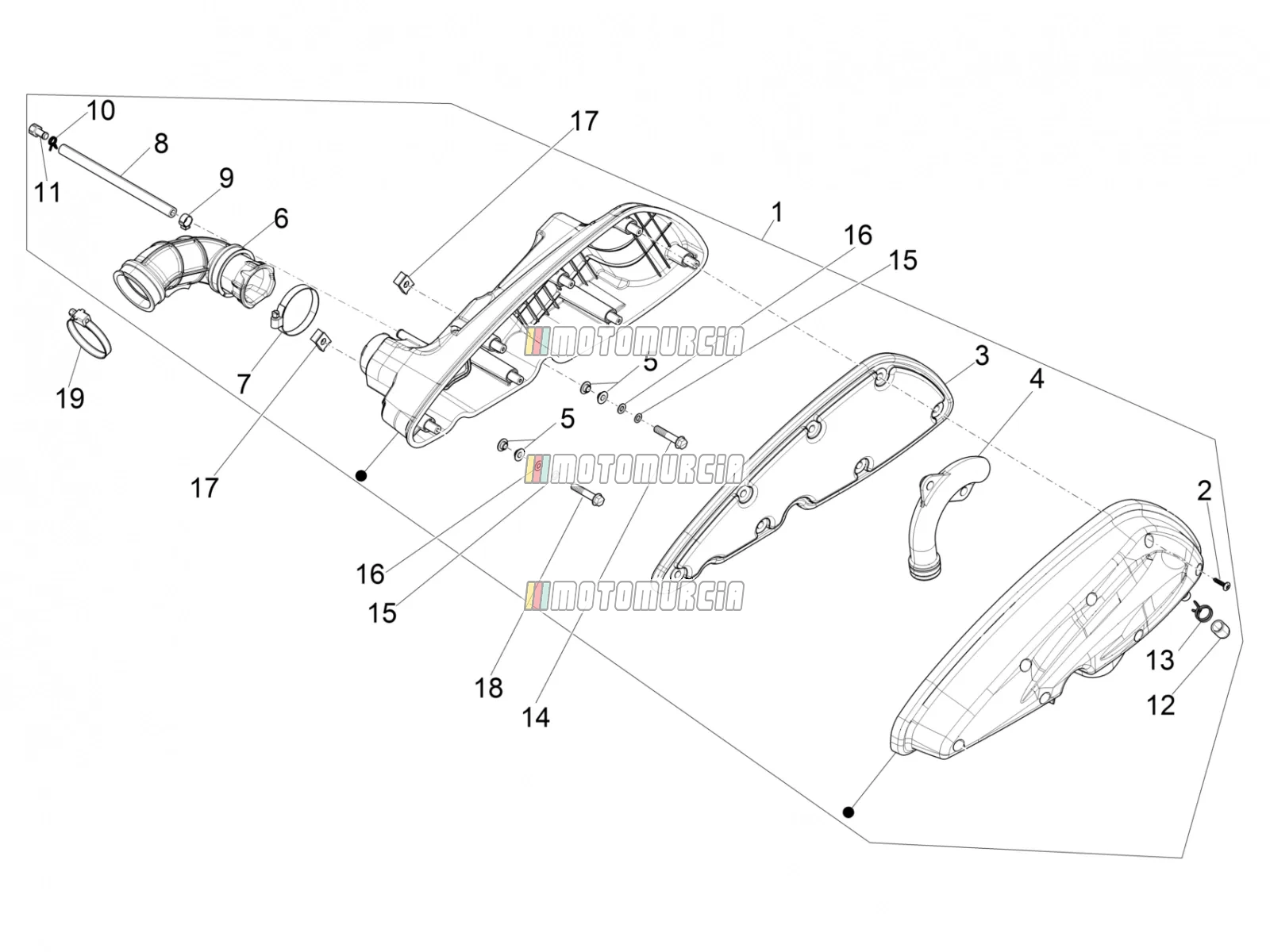

Exploded view — Air Filter

‹ Back to model
Piaggio MP3 350 Maxi Sport 2020 Piaggio MP3 350 Maxi Sport 2020
Air Filter

Products

1 Air filter box Available B013805
2 Screw Available 258146
  • Thread Screw Piaggio Group · 258146 · Quantity needed: 4 Available
    € 0,99
3 Air filter Available 8800010P
4 Intake Manifold Backorder 880120
  • Intake Boot Piaggio Group · 880120 Backorder
    € 19,02
5 Spacer Available 830056
  • Sleeve Piaggio Group · 830056 · Quantity needed: 4 Available
    € 1,48
6 Air bellow Available B013810
  • Sleeve Piaggio Group · B013810 Available
    € 47,44
7 Clamp Available 614188
  • HOSE CLAMP Piaggio Group · 614188 Available
    € 5,74
8 Oil exhaust pipe Available B013949
  • Hose Piaggio Group · B013949 Available
    € 12,80
9 Clamp Available CM001913
  • Hose Clamp Piaggio Group · CM001913 Available
    € 1,88
10 5 - Clamp Available CM002908
11 Cover Available 833965
  • Plug Piaggio Group · 833965 Available
    € 25,51
12 Cap Available 827831
  • Cap, transparent Piaggio Group · 827831 · Quantity needed: 2 Available
    € 5,74
13 Clamp Available CM002910
  • Clamping Spring Piaggio Group · CM002910 · Quantity needed: 2 Available
    € 1,29
14 3 - Flanged hexagonal-head screw Available B017682
  • Hexagon Screw Piaggio Group · B017682 Available
    € 1,45
15 Washer Available 012533
  • Washer 6,6x11 mm Piaggio Group · 012533 · Quantity needed: 2 Available
    € 1,45
16 Washer Available 003056
  • Washer 6,4x12x1 mm Piaggio Group · 003056 · Quantity needed: 2 Available
    € 1,84
17 Clip nuts (M6) Available 254485
  • Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available
    € 2,04
18 5 - Screw (M6x50) Available B016775
19 Clamp Available 260918
  • Clamp Piaggio Group · 260918 Available
    € 5,13
