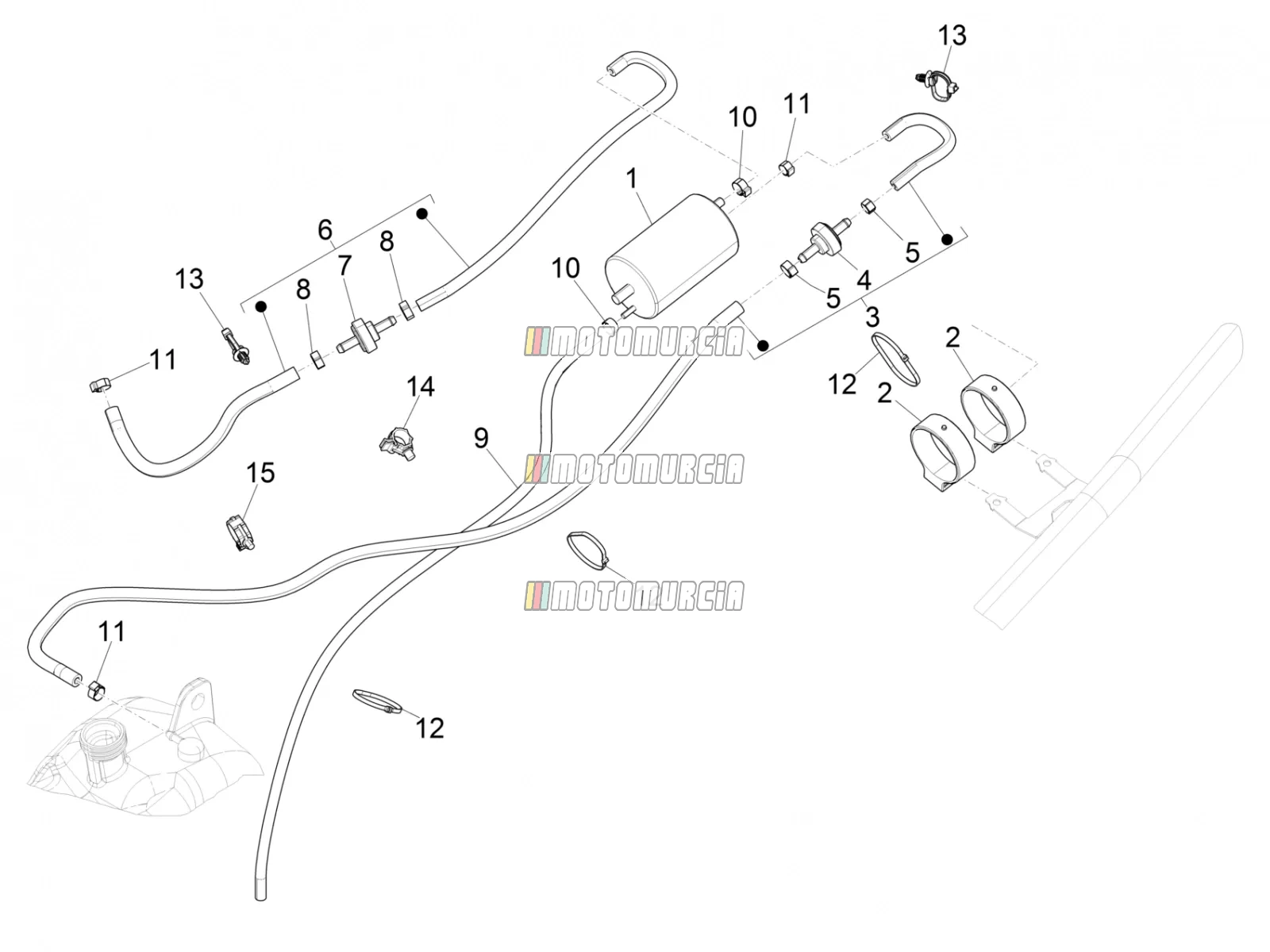

Exploded view — Anti-percolation System

Products

1 Canister Available 1B003695

•

  Charcoal Filter Piaggio Group · 1B003695 Available

  € 84,59

  Add to cart

2 Canister support Available 1B003721

•

  Clamp Piaggio Group · 1B003721 · Quantity needed: 2 Available

  € 4,59

  Add to cart

3 Complete breather pipe Backorder 1B004117

•

  Breather Pipe complete Piaggio Group · 1B004117 Backorder

  € 72,53

  Add to cart

4 Pressure valve Available AP8104614

•

  Pressure Valve Piaggio Group · AP8104614 Available

  € 69,74

  Add to cart

5 Clamp Available CM001914

•

  Clamp Piaggio Group · CM001914 · Quantity needed: 4 Available

  € 1,65

  Add to cart

6 Complete breather pipe Backorder 1B005819

•

  Breather Pipe Piaggio Group · 1B005819 Backorder

  € 102,06

  Add to cart

7 Safety valve Available 624384

•

  Valve Piaggio Group · 624384 Available

  € 28,94

  Add to cart

9 Tank breather pipe Ø5x10 L.1060 (L=1060) Available CM001432

•

  Breather Pipe length: 1,06m Piaggio Group · CM001432 · Quantity needed: 2 Available

  € 13,29

  Add to cart

11 Clamp Available CM001901

•

  Clamp Piaggio Group · CM001901 · Quantity needed: 2 Available

  € 2,04

  Add to cart

12 Hose clamp Available 257134

•

  Cable Ties length: 27,7cm Piaggio Group · 257134 · Quantity needed: 3 Available

  € 0,99

  Add to cart

13 Wiring clip Available 1D001143

•

  Clamp Piaggio Group · 1D001143 · Quantity needed: 2 Available

  € 1,45

  Add to cart

14 Non return spring L=12 Available CM006905

•

  Clamp length: 12mm Piaggio Group · CM006905 Available

  € 5,09

  Add to cart

15 10 - Fairlead Available CM006903

•

  Clamp Piaggio Group · CM006903 Available

  € 4,51

  Add to cart
