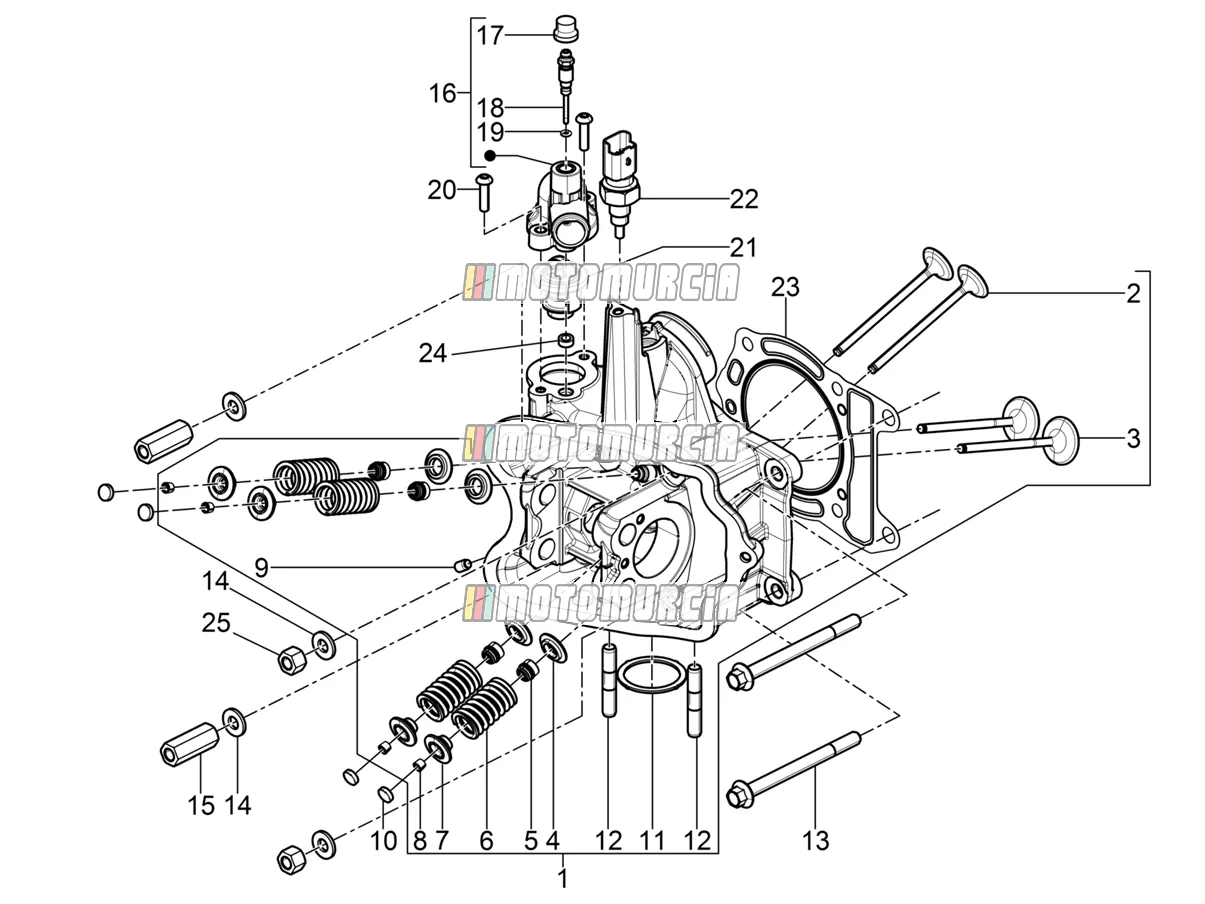

Exploded view — Cylinder Head Unit - Valve

‹ Back to model
Piaggio MP3 350 Maxi Sport 2020 Piaggio MP3 350 Maxi Sport 2020
Cylinder Head Unit - Valve

Products

1 Cylinder head assembly Available 1A007860
2 Valve (EX) Available 880602
  • Exhaust valve Piaggio Group · 880602 · Quantity needed: 2 Available
    € 57,04
3 Valve (IN) Available 880601
  • Inlet valve Piaggio Group · 880601 · Quantity needed: 2 Available
    € 22,69
4 Lower cap Available 878859
  • Spring Mount Piaggio Group · 878859 · Quantity needed: 4 Available
    € 4,09
5 Valve stem seal Available 436438
  • Oil seal Piaggio Group · 436438 · Quantity needed: 4 Available
    € 12,35
6 Valve spring Available 878860
  • Valve spring Piaggio Group · 878860 · Quantity needed: 4 Available
    € 7,16
7 Upper cap Available 879813
  • Spring holder Piaggio Group · 879813 · Quantity needed: 4 Available
    € 4,84
8 Valve half-cone Backorder 285846
  • Valve Half Cone Piaggio Group · 285846 · Quantity needed: 8 Backorder
    € 2,49
9 2 - Plug M6x10 (M6x10) Available 842360
10 Calibrated pad 2,60 mm Available CM163205
11 Exhaust gasket Available 879662
12 Stud bolt Available 1A003632R
  • Stud Screw Piaggio Group · 1A003632R · Quantity needed: 2 Available
    € 2,63
13 Screw Available B013593
  • Flanged Screw Piaggio Group · B013593 · Quantity needed: 2 Available
    € 2,86
14 Washer Available B014079
  • Washer Piaggio Group · B014079 · Quantity needed: 4 Available
    € 1,39
15 High hexagonal nut Available B013371
  • Standard nut Piaggio Group · B013371 · Quantity needed: 2 Available
    € 4,56
16 Thermostat cover Available B018147
  • Lid Piaggio Group · B018147 Available
    € 75,02
17 Bleed valve cap Available 063435
  • Covering Cap Piaggio Group · 063435 Available
    € 2,96
18 Bleed screw Available 845605
  • Bleeder Screw Piaggio Group · 845605 Available
    € 17,33
19 O-Ring Available 297027
  • Oil seal Piaggio Group · 297027 Available
    € 1,72
20 Screw Available B016808
  • Torx screw M5x20 Piaggio Group · B016808 · Quantity needed: 2 Available
    € 1,48
21 Thermostat Available 82831R5
22 Water temperature switch Available 1A021287R
23 Cylinder head gasket Available B015183
24 Packing Available 878906
  • Oil seal Piaggio Group · 878906 Available
    € 5,66
25 Nut Available 015335
  • Standard nut Piaggio Group · 015335 · Quantity needed: 2 Available
    € 0,99
