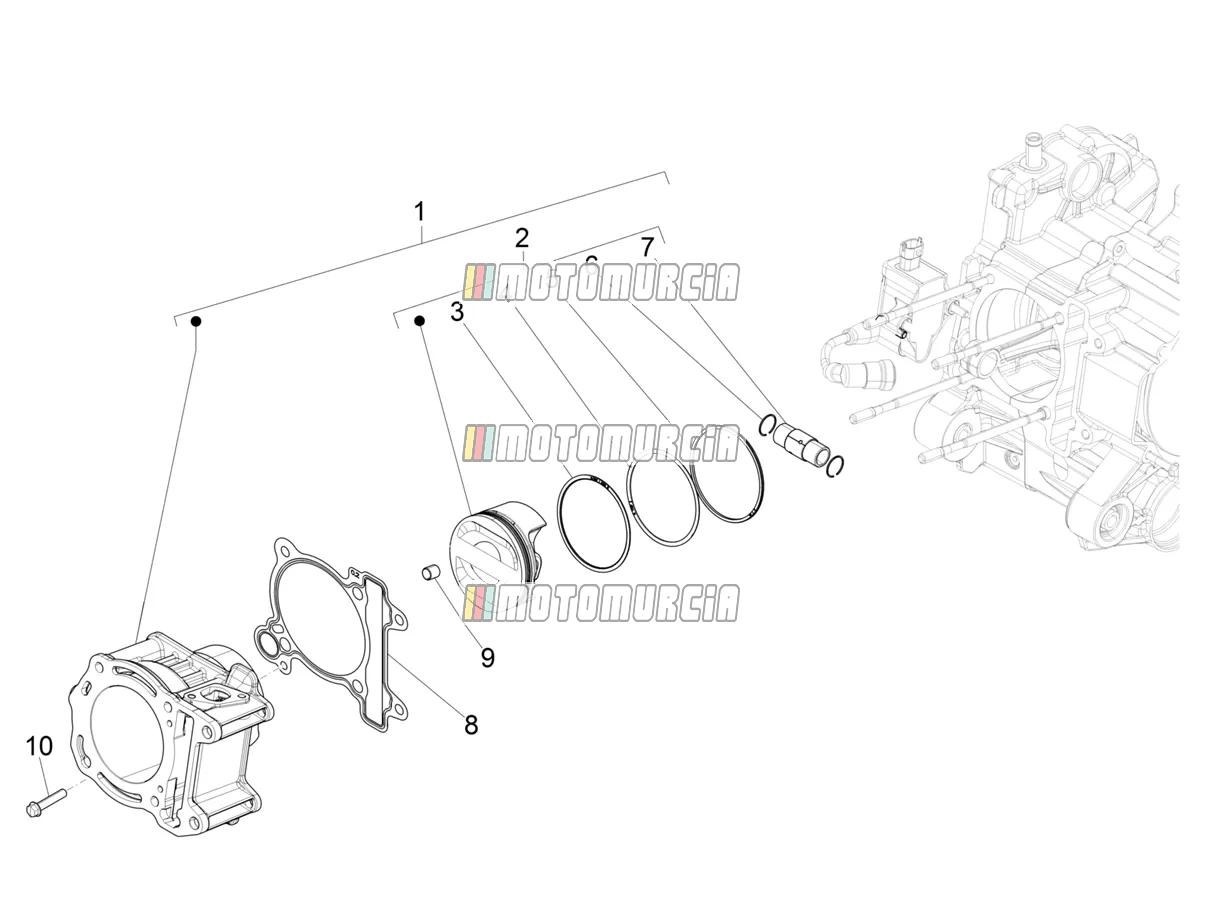

Exploded view — Cylinder-piston-wrist Pin Unit

Products

1 Cylinder kit Available 1A013567

•

  Cylinder Piaggio Group · 1A013567 Available

  € 326,29

  Add to cart

2 Piston + piston pin cat "M" Backorder 1A0135680M

•

  Piston Piaggio Group · 1A0135680M Backorder

  € 203,93

  Add to cart
• 1A0135680N Piston-wrist pin assy. cat. "N"
  No longer available
•

  Piston Piaggio Group · 1A0135680P Available

  € 203,93

  Add to cart
•

  Piston Piaggio Group · 1A0135680O Available

  € 203,93

  Add to cart

3 Compression ring Ø78x1x3.35 Available B015279

•

  Piston Ring Ø 78,00 mm, thickness: 1,00 mm Piaggio Group · B015279 Available

  € 16,11

  Add to cart

4 Oil scraper ring Ø78x1x3.25 Available B015280

•

  Piston Ring Ø 78,00 mm, thickness: 1,00 mm Piaggio Group · B015280 Available

  € 29,54

  Add to cart

5 Oil scraper ring Ø78x2x3.2 Available B015281

•

  Piston Ring Ø 78,00 mm, thickness: 2,00 mm Piaggio Group · B015281 Available

  € 22,13

  Add to cart

6 Seeger Available 878897

•

  Piston Clip Piaggio Group · 878897 · Quantity needed: 2 Available

  € 1,45

  Add to cart

7 Gudgeon bucket Available 878896

•

  Piston Pin Piaggio Group · 878896 Available

  € 13,67

  Add to cart

8 Gasket - cylinder base (0,3 mm) Available 1A000728

•

  Cylinder Base Gasket thickness: 0,30 mm Piaggio Group · 1A000728 Available

  € 24,97

  Add to cart
•

  Cylinder Base Gasket thickness: 0,40 mm Piaggio Group · 1A000729 Available

  € 24,26

  Add to cart
•

  Cylinder Base Gasket thickness: 0,20 mm Piaggio Group · 1A000727 Available

  € 24,26

  Add to cart

9 40 - Dowel pin Available 435571

•

  Adapter Sleeve Piaggio Group · 435571 · Quantity needed: 4 Available

  € 0,99

  Add to cart

10 Screw Available B016792

•

  Flanged Screw M6x30 Piaggio Group · B016792 Available

  € 1,48

  Add to cart
