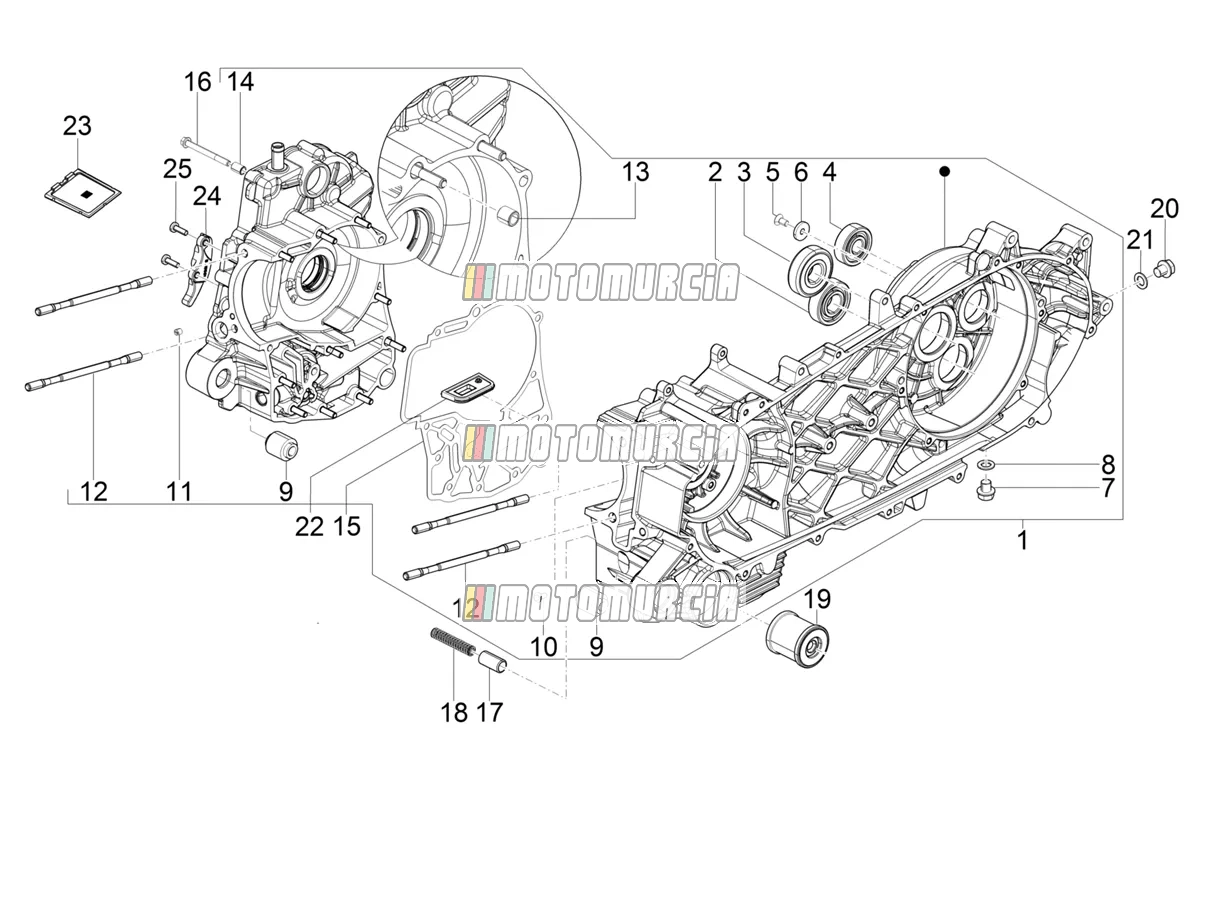

Exploded view — Crankcase

Products

1 2nd cat. complete crankcase Backorder 1A01675102

•

  Crankshaft Housing Piaggio Group · 1A01675102 Backorder

  € 1.111,42

  Add to cart
•

  Crankshaft Housing Piaggio Group · 1A01675101 Backorder

  € 1.111,42

  Add to cart
• 1A0027810B 2nd cat. complete crankcase
  No longer available
• 1A0027810A Complete crankcase 1st cat.
  No longer available

2 Bearing Available 1A024412R

•

  Ball bearing 20x47x14 mm Piaggio Group · 1A024412R Available

  € 12,79

  Add to cart

3 Radial bearing Available B015269

•

  Crankshaft bearing Piaggio Group · B015269 Available

  € 76,99

  Add to cart

4 Bearing Available 83018R

•

  Radial bearing TM6302Y, 15x42x13 mm Piaggio Group · 83018R Available

  € 11,14

  Add to cart

5 Screw Available B013608

•

  Screw Piaggio Group · B013608 Available

  € 2,26

  Add to cart

6 Washer Available 873905

•

  Washer Piaggio Group · 873905 Available

  € 11,82

  Add to cart

7 Screw Backorder 1A021939

•

  Screw M10x12 Piaggio Group · 1A021939 Backorder

  € 7,82

  Add to cart

8 Washer Available 1A011500

•

  Washer 10,5x17x1,5 mm Piaggio Group · 1A011500 Available

  € 2,35

  Add to cart
•

  Shim Piaggio Group · AP9150472 Available

  € 2,43

  Add to cart

9 Silentblock - engine mount Available 486081

•

  Silentblock Piaggio Group · 486081 · Quantity needed: 2 Available

  € 10,29

  Add to cart

10 Calibrated nozzle Available B015068

•

  Calibrated nozzle Piaggio Group · B015068 Available

  € 6,61

  Add to cart

11 Calibrated nozzle Available B015069

•

  Calibrated nozzle Piaggio Group · B015069 Available

  € 6,61

  Add to cart

12 Stud bolt (250 - 300 - 350 ccm) Available 1A003628R

•

  Spacer bolt Piaggio Group · 1A003628R · Quantity needed: 4 Available

  € 11,52

  Add to cart

13 Dowel pin Available B015956

•

  Adapter Sleeve 9,5x15 Piaggio Group · B015956 · Quantity needed: 2 Available

  € 1,32

  Add to cart

14 Dowel pin Available B015957

•

  Adapter Sleeve 11x8,1x10 Piaggio Group · B015957 · Quantity needed: 2 Available

  € 1,26

  Add to cart

15 Gasket - crankcase Available B015425

•

  Housing Gasket Piaggio Group · B015425 Available

  € 13,31

  Add to cart

16 Screw Available B016425

•

  Flanged Screw M6x60 Piaggio Group · B016425 · Quantity needed: 12 Available

  € 1,82

  Add to cart

17 Oil pressure valve Available 829661

•

  Oil pressure Valve Piaggio Group · 829661 Available

  € 12,62

  Add to cart

18 Spring Available 485655

•

  Spring Piaggio Group · 485655 Available

  € 1,65

  Add to cart

19 Oil filter Available 1A022356

•

  Oil Filter Piaggio Group · 1a022356 Available

  € 19,64

  Add to cart

22 Reeds bracket Available 877704

•

  Membrane Piaggio Group · 877704 Available

  € 33,94

  Add to cart

23 Intake oil filter Available 877822

•

  Oil Strainer Piaggio Group · 877822 Available

  € 9,38

  Add to cart

24 Timing chain guide Available B015581

•

  Chain Guide Piaggio Group · B015581 Available

  € 19,92

  Add to cart

25 Screw Available B017296

•

  Torx screw Piaggio Group · B017296 · Quantity needed: 2 Available

  € 2,30

  Add to cart
