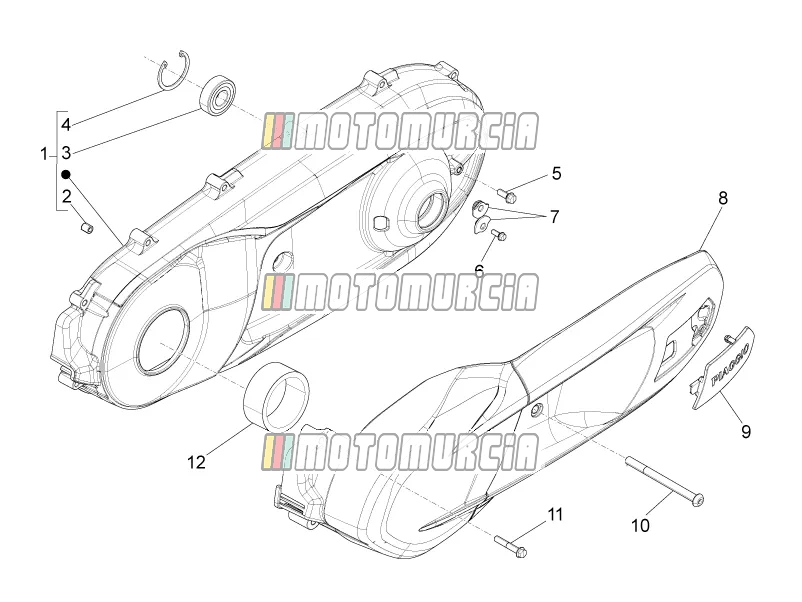

Exploded view — Crankcase Cover - Crankcase Cooling

Products

1 Complete transmission cover Available 1A0115445

•

  Housing cover Piaggio Group · 1A0115445 Available

  € 170,91

  Add to cart

2 Dowel pin Available 277916

•

  Adapter Sleeve Piaggio Group · 277916 · Quantity needed: 2 Available

  € 7,27

  Add to cart

3 Bearing Available 840277

•

  Radial bearing 6203 C3, 17x40x12 mm Piaggio Group · 840277 Available

  € 10,27

  Add to cart

4 Seeger Available 825667

•

  Snap-in Ring Piaggio Group · 825667 Available

  € 0,99

  Add to cart

5 Screw Available B016792

•

  Flanged Screw M6x30 Piaggio Group · B016792 · Quantity needed: 11 Available

  € 1,48

  Add to cart

6 Screw Available B016777

•

  Flanged Screw M6x16 Piaggio Group · B016777 Available

  € 1,48

  Add to cart

7 3 - Retainer buffer Available 871458

•

  Buffer Piaggio Group · 871458 · Quantity needed: 3 Available

  € 1,89

  Add to cart

8 Cover soundproofing material Available B013999

•

  Cover Piaggio Group · B013999 Available

  € 60,42

  Add to cart

9 Cover with logo Available 1A007154

•

  Lid Piaggio Group · 1A007154 Available

  € 11,27

  Add to cart

10 Screw Available B014475

•

  Screw Piaggio Group · B014475 Available

  € 10,53

  Add to cart

11 Screw Available 414838

•

  Screw M6x35 Piaggio Group · 414838 · Quantity needed: 2 Available

  € 1,48

  Add to cart

12 Air filter Available 880148

•

  Air Filter Insert Piaggio Group · 880148 Available

  € 5,74
