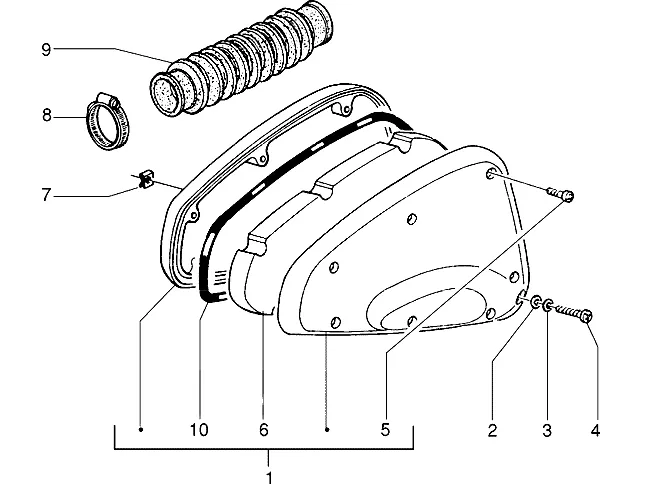

Exploded view — Air Cleaner

Products

1 Air filter 436066 No longer available

• 436066 Air filter
  No longer available

2 Washer Available 012533

•

  Washer 6,6x11 mm Piaggio Group · 012533 · Quantity needed: 2 Available

  € 1,45

  Add to cart

3 Washer Available 003056

•

  Washer 6,4x12x1 mm Piaggio Group · 003056 · Quantity needed: 2 Available

  € 1,84

  Add to cart

4 Screw Available 018640

•

  Screw M6x50 Piaggio Group · 018640 · Quantity needed: 2 Available

  € 0,99

  Add to cart

5 Screw Available 258146

•

  Thread Screw Piaggio Group · 258146 · Quantity needed: 6 Available

  € 0,99

  Add to cart

6 Air filter Available 4334370P

•

  No description available Piaggio Group · 4334370P Available

  € 10,68

  Add to cart

7 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available

  € 2,04

  Add to cart

8 Hose clamp Available 257134

•

  Cable Ties length: 27,7cm Piaggio Group · 257134 · Quantity needed: 2 Available

  € 0,99

  Add to cart

9 Air bellow Available 431910

•

  Fork Dust Cover Piaggio Group · 431910 Available

  € 20,27

  Add to cart

10 Gasket 431908 No longer available

• 431908 Gasket
  No longer available
