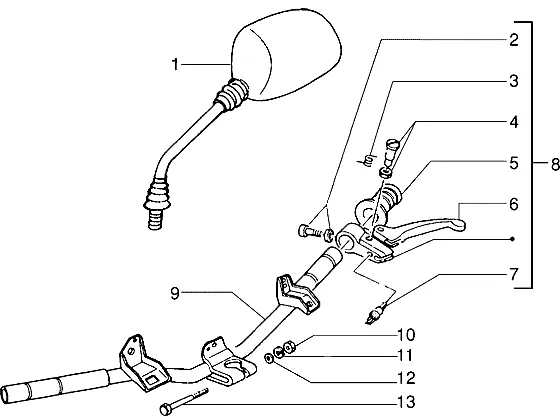

Exploded view — Handlebars Component Parts

‹ Back to model

Piaggio NTT 1998–2005

Products

1 Mirror, l.h. Available 271022

Mirror, left, black Piaggio Group · 271022 Available

€ 29,86
271018 Mirror, r.h.
No longer available

2 Screw Available 123394

Screw Piaggio Group · 123394 Available

€ 2,86

3 Spring Available 267948

Spring Piaggio Group · 267948 Available

€ 1,44

4 Screw Available 265249

Screw with Nut Piaggio Group · 265249 Available

€ 3,99

5 Grip Left Available 274489

Rubber Grip left Piaggio Group · 274489 Available

€ 9,12

6 Brake lever 564689 No longer available

564689 Brake lever
No longer available

7 Brake light switch Available 580953

Stop light switch Piaggio Group · 580953 Available

€ 9,04

8 Hose 564700 No longer available

564700 Hose
No longer available

9 Handlebar 5832314 No longer available

5832314 Handlebar
No longer available

10 Nut Available 015252

Standard nut Piaggio Group · 015252 Available

€ 0,99

11 Washer Available 012535

Washer Piaggio Group · 012535 Available

€ 1,52

12 Washer Available 016626

Washer 10,4x18x2 mm Piaggio Group · 016626 Available

€ 1,44

13 Screw 015542 No longer available

015542 Screw
No longer available
