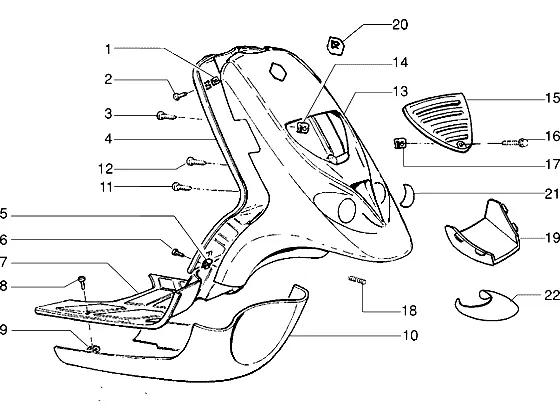

Exploded view — Front Shield-footboard-spoiler

‹ Back to model
Piaggio NTT 1998–2005 Piaggio NTT 1998–2005
Front Shield-footboard-spoiler

Products

2 Screw (4,2x19) Available 258249
  • Sheet Metal Screw Piaggio Group · 258249 · Quantity needed: 6 Available
    € 0,99
3 Screw m6x55 259988 No longer available
  • 259988 Screw m6x55 Quantity needed: 2
    No longer available
4 Counter shield 624219000C No longer available
  • 624219000C Counter shield
    No longer available
5 Clip nuts (M6) Available 254485
  • Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available
    € 2,04
6 Screw Available 259349
  • Screw 4,2x13 mm Piaggio Group · 259349 · Quantity needed: 2 Available
    € 0,99
7 Footrest 298523000C No longer available
  • 298523000C Footrest
    No longer available
10 Spoiler 575900 No longer available
  • 575900 Spoiler
    No longer available
  • 4708105 Spoiler
    No longer available
  • 4708795 Spoiler
    No longer available
  • 4708905 Spoiler
    No longer available
  • 4708815 Spoiler
    No longer available
  • 4708945 Spoiler
    No longer available
  • 4708045 Spoiler
    No longer available
11 Screw (M6x16) Available 575249
  • Screw M6 Piaggio Group · 575249 · Quantity needed: 3 Available
    € 0,99
12 Screw (M6x22) Available CM179302
  • Screw M6x22 Piaggio Group · CM179302 · Quantity needed: 2 Available
    € 1,48
13 Shield 4709045 No longer available
  • 4709045 Shield
    No longer available
  • 4709795 Shield
    No longer available
  • 4709865 Shield
    No longer available
  • 4709955 Shield
    No longer available
  • 4709945 Shield
    No longer available
  • 4709105 Shield
    No longer available
  • 4709815 Shield
    No longer available
  • 4709875 Shield
    No longer available
  • 2987255 Shield
    No longer available
  • 4709985 Shield
    No longer available
  • 4709905 Shield
    No longer available
  • 4709005 Shield
    No longer available
15 Guard Available CM0008015
  • Cascade, black Piaggio Group · CM0008015 Available
    € 37,27
16 Screw Available CM178606
17 Clip nuts Available CM017410
  • Sheet nut Piaggio Group · CM017410 Available
    € 0,99
18 Screw Available 463874
19 Air deflector 575154 No longer available
  • 575154 Air deflector
    No longer available
20 Shield puch 573257 No longer available
  • 573257 Shield puch
    No longer available
  • 295596 Piaggio shield
    No longer available
21 Decal 463978 No longer available
  • 463978 Decal Quantity needed: 2
    No longer available
22 Mudguard 298291 No longer available
  • 298291 Mudguard
    No longer available
