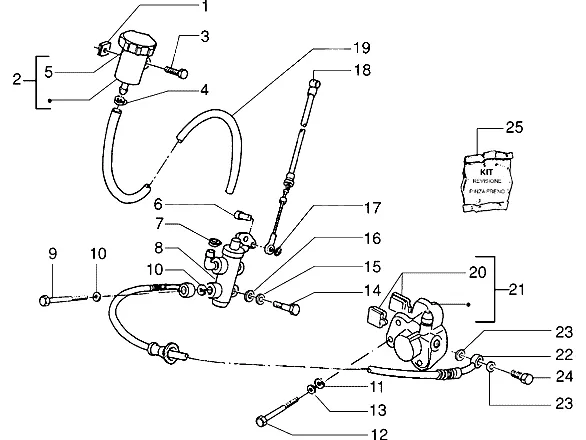

Exploded view — Front Brake Cylinder-brake Caliper

Products

1 Clip nuts Available CM017410

•

  Sheet nut Piaggio Group · CM017410 Available

  € 0,99

  Add to cart

2 Brake oil tank Available 274598

•

  Brake fluid reservoir Piaggio Group · 274598 Available

  € 73,88

  Add to cart

3 Screw (4,2x19) Available 258249

•

  Sheet Metal Screw Piaggio Group · 258249 Available

  € 0,99

  Add to cart

4 Clamp Available CM002904

•

  Clamping Spring Piaggio Group · CM002904 Available

  € 0,99

  Add to cart

5 Brake fluid reservoir cover Backorder 498431

•

  Lid Piaggio Group · 498431 Backorder

  € 26,63

  Add to cart

6 Pin 271357 No longer available

• 271357 Pin
  No longer available

7 Lock-strap L=180mm Available 145298

•

  Cable Ties black, length: 18,0cm Piaggio Group · 145298 Available

  € 1,43

  Add to cart

8 Pump 271019 No longer available

• 271019 Pump
  No longer available

10 Washer gasket Available 127927

•

  Copper Flange Gasket 10x16x1 mm Piaggio Group · 127927 Available

  € 1,31

  Add to cart

11 Washer (spring) Available 016408

•

  Spring Washer 13,75x8,15x4,5 mm Piaggio Group · 016408 · Quantity needed: 2 Available

  € 1,84

  Add to cart

12 Screw Available 597150

•

  Screw M8x25 Piaggio Group · 597150 · Quantity needed: 2 Available

  € 1,72

  Add to cart
•

  Screw M8x30 Piaggio Group · 015792 · Quantity needed: 2 Available

  € 1,48

  Add to cart

13 Washer Available 003058

•

  Washer 15x8,4x1,5 mm Piaggio Group · 003058 · Quantity needed: 2 Available

  € 1,84

  Add to cart

14 Screw Available 031091

•

  Hexagon Screw M6x22 Piaggio Group · 031091 · Quantity needed: 2 Available

  € 0,99

  Add to cart

15 Washer Available 016406

•

  Washer 6,4x11,8x1 mm Piaggio Group · 016406 · Quantity needed: 2 Available

  € 1,79

  Add to cart

16 Washer Available 003056

•

  Washer 6,4x12x1 mm Piaggio Group · 003056 · Quantity needed: 2 Available

  € 1,84

  Add to cart

17 Ring Available 005964

•

  Locking Ring Piaggio Group · 005964 Available

  € 1,48

  Add to cart

18 Brake Cable Front 271479 No longer available

• 271479 Brake Cable Front
  No longer available

19 Pipe Available 463906

•

  Oil Hose Piaggio Group · 463906 Available

  € 7,87

  Add to cart

20 Brake pads Available 647172

•

  Brake pad set Brembo Piaggio Group · 647172 Available

  € 19,78

  Add to cart

21 Caliper (Brembo) Front Available 600734

•

  Brake Caliper Heng Tong, gold, front Piaggio Group · 600734 Available

  € 113,23

  Add to cart

22 Brake hose 463864 No longer available

• 463864 Brake hose
  No longer available

24 Oil pipe screw M10x18 Available 265451

•

  Hollow screw M10x18 Piaggio Group · 265451 Available

  € 4,91

  Add to cart

25 Kit caliper overh. 498434 No longer available

• 498434 Kit caliper overh.
  No longer available
