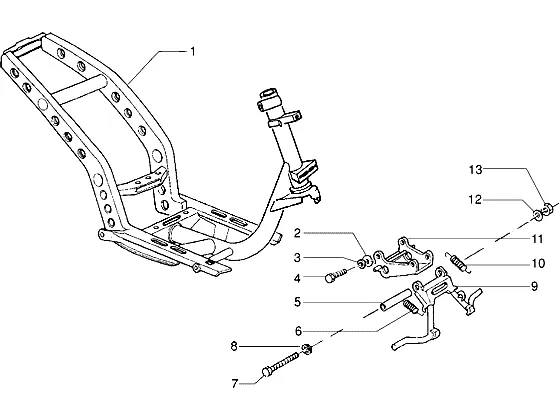

Exploded view — Chassis-central Stand

Products

1 Not available 4638375 No longer available

• 4638375 Not available
  No longer available

2 Washer (spring) Available 016408

•

  Spring Washer 13,75x8,15x4,5 mm Piaggio Group · 016408 · Quantity needed: 2 Available

  € 1,84

  Add to cart

3 Washer Available 013861

•

  Washer 8,2x20x2,5 mm Piaggio Group · 013861 · Quantity needed: 2 Available

  € 1,59

  Add to cart

4 Screw Available 031122

•

  Hexagon Screw M8x30 Piaggio Group · 031122 · Quantity needed: 2 Available

  € 1,62

  Add to cart

5 Pin Available 583603

•

  Stand bolt Piaggio Group · 583603 Available

  € 6,62

  Add to cart

6 Spring Available 278940

•

  Spring for main stand Piaggio Group · 278940 Available

  € 7,53

  Add to cart

7 Screw Available 030080

•

  Screw Piaggio Group · 030080 Available

  € 3,21

  Add to cart

8 Gasket ring Available 271695

•

  Oil seal Piaggio Group · 271695 · Quantity needed: 2 Available

  € 1,48

  Add to cart

9 Main Stand comp. Available 581505

•

  Centre stand complete Piaggio Group · 581505 Available

  € 86,95

  Add to cart

11 Maintenance Available 272929

•

  Swingarm Piaggio Group · 272929 Available

  € 47,36

  Add to cart

13 Nut Available 020108

•

  Standard nut Piaggio Group · 020108 Available

  € 0,99

  Add to cart

14 Screw Available 031116

•

  Screw M8x16 Piaggio Group · 031116 · Quantity needed: 2 Available

  € 2,18

  Add to cart

15 Footrest Available 295451

•

  Footrest Piaggio Group · 295451 · Quantity needed: 2 Available

  € 20,26

  Add to cart
•

  Footrest right Piaggio Group · 295453 Available

  € 33,03

  Add to cart
•

  Footrest left Piaggio Group · 296511 Backorder

  € 78,58

  Add to cart

16 Washer Available 003058

•

  Washer 15x8,4x1,5 mm Piaggio Group · 003058 · Quantity needed: 3 Available

  € 1,84

  Add to cart

17 Ball D6 295591 No longer available

• 295591 Ball D6 Quantity needed: 2
  No longer available

18 Plate 295952 No longer available

• 295952 Plate Quantity needed: 2
  No longer available

19 Pin Available 295593

•

  Bolts Piaggio Group · 295593 · Quantity needed: 2 Available

  € 5,43

  Add to cart

20 Split pin 1,7x18 Available 003208

•

  Split Pin Piaggio Group · 003208 · Quantity needed: 2 Available

  € 0,99

  Add to cart

21 Washer Backorder 006177

•

  Washer Piaggio Group · 006177 · Quantity needed: 2 Backorder

  € 1,61

  Add to cart

22 Return spring 295590 No longer available

• 295590 Return spring Quantity needed: 2
  No longer available
