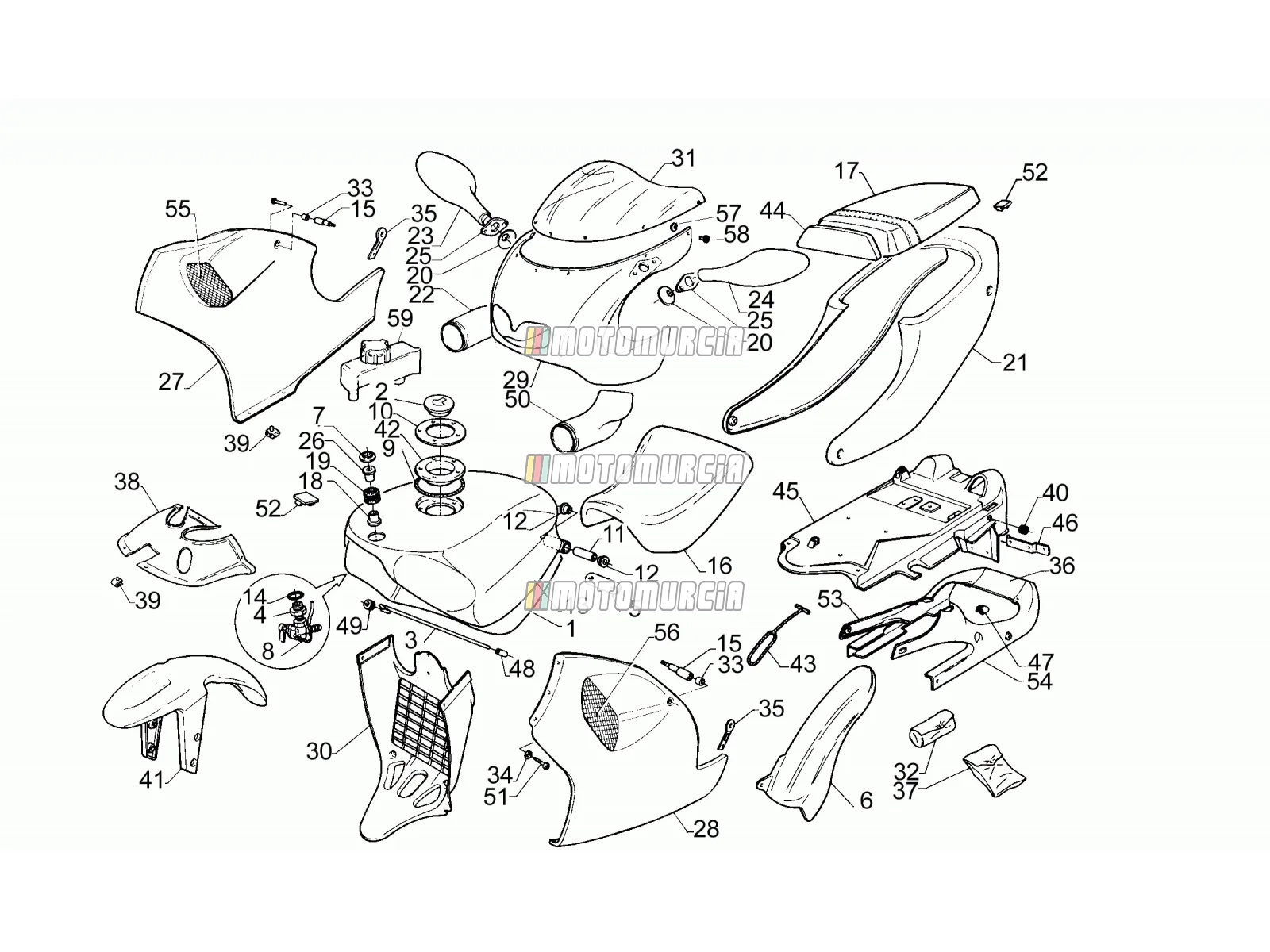

Exploded view — Body

‹ Back to model

Aprilia RS 125 2T 1995

Products

1 Fuel tank AP8131605 No longer available

AP8131605 Fuel tank
No longer available

2 Crom.tank plug AP8202380 No longer available

AP8202380 Crom.tank plug
No longer available

3 Fuel tank fastener rod AP8121803 No longer available

AP8121803 Fuel tank fastener rod
No longer available

4 Fuel tap union AP8221176 No longer available

AP8221176 Fuel tap union
No longer available

5 Fuel tank spacer Backorder AP8120815

Plate Piaggio Group · AP8120815 Backorder

€ 6,63

6 Low mudguard, black AP8126356 No longer available

AP8126356 Low mudguard, black
No longer available

7 Washer Available AP8121819

Washer 6,5x12,5 mm Piaggio Group · AP8121819 Available

€ 3,28

8 Fuel tap Available AP8102802

Petrol Tap Piaggio Group · AP8102802 Available

€ 56,33

9 Filler cap gasket Available AP8120702

Filler cap seal Piaggio Group · AP8120702 Available

€ 14,37

10 Ring nut fuel filler cap AP8102361 No longer available

AP8102361 Ring nut fuel filler cap
No longer available

11 Rear spacer AP8152153 No longer available

AP8152153 Rear spacer
No longer available

12 Rubber spacer * Backorder AP8120709

Rubber Piaggio Group · AP8120709 · Quantity needed: 2 Backorder

€ 2,86

13 Tank cover, blue/alum. AP8138487 No longer available

AP8138487 Tank cover, blue/alum.
No longer available
AP8138141 Tank cover, black/alum.
No longer available

14 O-ring 3050 AP8120796 No longer available

AP8120796 O-ring 3050
No longer available

15 Special bush * AP8121867 No longer available

AP8121867 Special bush * Quantity needed: 2
No longer available

16 Saddle assy (driver) AP8129118 No longer available

AP8129118 Saddle assy (driver)
No longer available

17 Rear saddle, black AP8129153 No longer available

AP8129153 Rear saddle, black
No longer available
AP8129164 Rear saddle, blue
No longer available

18 Rear brake lever bush AP8221106 No longer available

AP8221106 Rear brake lever bush
No longer available

19 Damper Available AP8120557

Plug Piaggio Group · AP8120557 Available

€ 19,08

20 Mirror joint cup Available AP8102341

Sleeve Piaggio Group · AP8102341 · Quantity needed: 2 Available

€ 2,78

21 Rear fairing, black AP8138486 No longer available

AP8138486 Rear fairing, black
No longer available
AP8138491 Rear fairing, red/blue
No longer available

22 RH air duct AP8138302 No longer available

AP8138302 RH air duct
No longer available

23 RH rearview mirror AP8102705 No longer available

AP8102705 RH rearview mirror
No longer available

24 LH rearview mirror AP8102706 No longer available

AP8102706 LH rearview mirror
No longer available

25 Mirror insertion kit Available AP8102909

Mirror mount Piaggio Group · AP8102909 Available

€ 18,84

26 Spacer Available AP8121114

AP8121114 Spacer

Sleeve Piaggio Group · ap8121114 Available

€ 4,51

Sleeve Piaggio Group · AP8121114 Available

€ 4,51

Sleeve Piaggio Group · ap8121114 Available

€ 4,51

27 RH side panel, black AP8138547 No longer available

AP8138547 RH side panel, black
No longer available
AP8138492 RH fairing, red
No longer available

28 LH side panel, black AP8138484 No longer available

AP8138484 LH side panel, black
No longer available
AP8138460 LH hol.pun.panel, black
No longer available
AP8138490 LH fairing, red
No longer available

29 Windshield, red/grey AP8138488 No longer available

AP8138488 Windshield, red/grey
No longer available
AP8138482 Front fairing, black
No longer available

30 Water cooler shield, black AP8138469 No longer available

AP8138469 Water cooler shield, black
No longer available

31 Windshield AP8131916 No longer available

AP8131916 Windshield
No longer available

32 Tools kit AP8102106 No longer available

AP8102106 Tools kit
No longer available

33 Rubber w/ insert Available AP8120531

Rubber Bush Piaggio Group · AP8120531 · Quantity needed: 10 Available

€ 7,84

34 Washer 10x5,3x1* Available AP8120591

Shim Piaggio Group · AP8120591 · Quantity needed: 20 Available

€ 0,99

35 Lower plate fairing AP8134263 No longer available

AP8134263 Lower plate fairing
No longer available

36 Centr.saddle sup cov., black AP8138085 No longer available

AP8138085 Centr.saddle sup cov., black
No longer available

37 Sticker kit AP8137628 No longer available

AP8137628 Sticker kit
No longer available
AP8137737 Sticker kit
No longer available

38 Low.front fairing lockup AP8138304 No longer available

AP8138304 Low.front fairing lockup
No longer available

39 Clip nuts (M5) Available AP8102375

Sheet nut M5 Piaggio Group · AP8102375 · Quantity needed: 20 Available

€ 2,47

40 Damper Available AP8120223

Vibrations Damper Piaggio Group · AP8120223 · Quantity needed: 2 Available

€ 3,36

41 Front mudguard AP8126511 No longer available

AP8126511 Front mudguard
No longer available
AP8126510 Front mudguard
No longer available

42 Filler cap Backorder AP8121784

Tank Nozzle Piaggio Group · AP8121784 Backorder

€ 41,52

43 Elastic Available AP8120177

Bracket Piaggio Group · AP8120177 Available

€ 7,84

44 Seat cushion AP8129190 No longer available

AP8129190 Seat cushion
No longer available

45 N.plate holder/glove comp. AP8126501 No longer available

AP8126501 N.plate holder/glove comp.
No longer available

46 N.plate support AP8134257 No longer available

AP8134257 N.plate support
No longer available

47 Clip nuts (M6) Available 254485

Sheet nut Piaggio Group · 254485 · Quantity needed: 5 Available

€ 2,04

48 Spacer (rubber) Available AP8120712

Rubber Piaggio Group · AP8120712 Available

€ 2,17

49 Rubber spacer * AP8120598 No longer available

AP8120598 Rubber spacer *
No longer available

50 LH air duct AP8138303 No longer available

AP8138303 LH air duct
No longer available

51 Screw Available AP8152268

Screw M5x16 Piaggio Group · AP8152268 · Quantity needed: 15 Available

€ 2,18

52 Cable-guide AP8120708 No longer available

AP8120708 Cable-guide
No longer available

53 RH saddle sup cov., black AP8138083 No longer available

AP8138083 RH saddle sup cov., black
No longer available

54 LH hol.pun.s.sup c., black AP8138462 No longer available

AP8138462 LH hol.pun.s.sup c., black
No longer available
AP8138485 LH saddle sup cov., black
No longer available

55 RH side panel guard AP8131733 No longer available

AP8131733 RH side panel guard
No longer available

56 LH side panel guard AP8131734 No longer available

AP8131734 LH side panel guard
No longer available

57 Washer for shafts D5 (D5) Available AP8150450

Waved Washer Ø 5,00 mm Piaggio Group · AP8150450 · Quantity needed: 7 Available

€ 2,47

58 Rivet, anodized blu 5x10 AP8102603 No longer available

AP8102603 Rivet, anodized blu 5x10 Quantity needed: 7
No longer available

59 Oil tank AP8230925 No longer available

AP8230925 Oil tank Quantity needed: 7
No longer available
