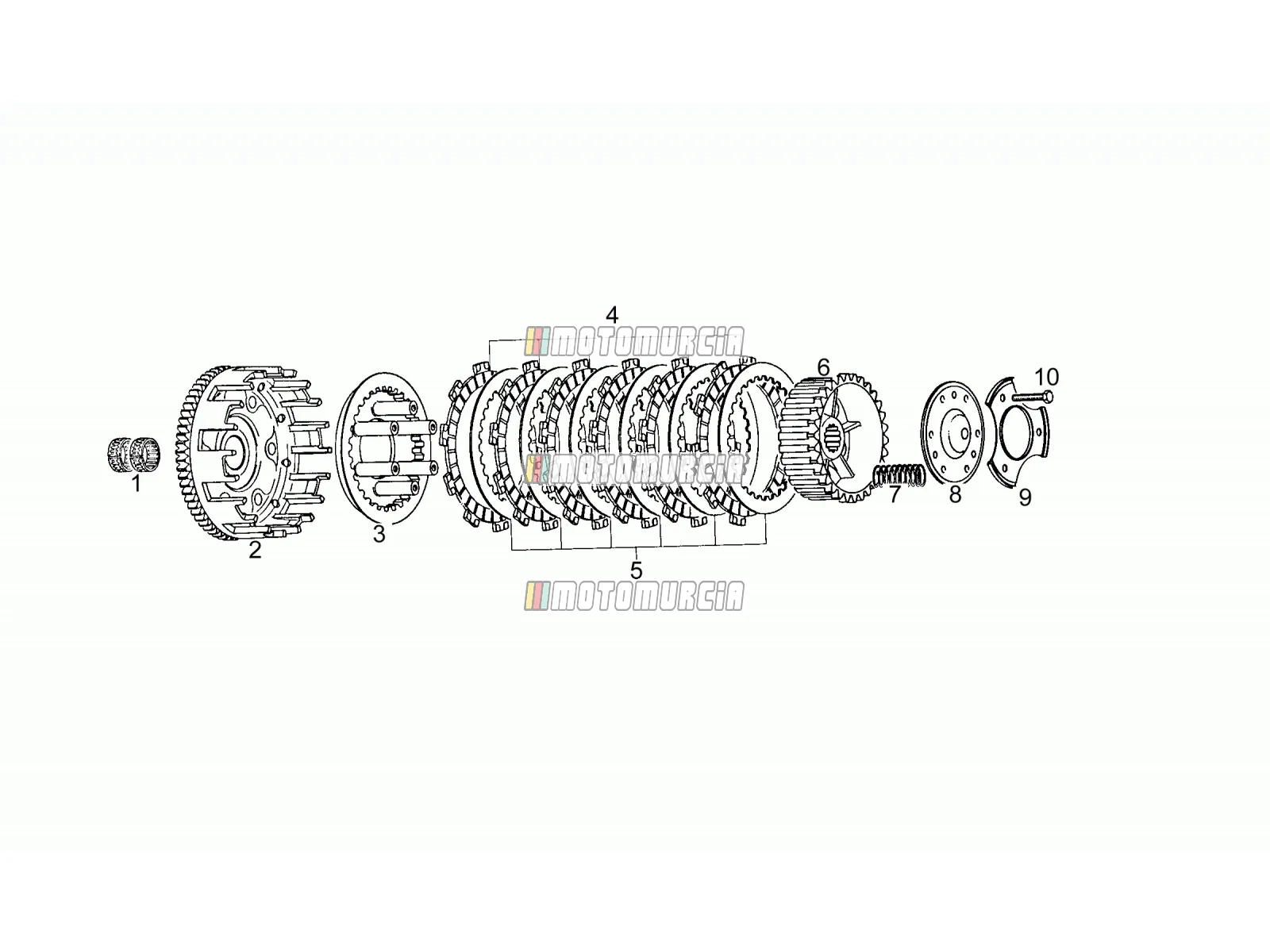

Exploded view — Clutch

Products

1 Roller cage 21x25x10 AP0232742 No longer available

• AP0232742 Roller cage 21x25x10 Quantity needed: 2
  No longer available

2 Primary transm. AP0295406 No longer available

• AP0295406 Primary transm.
  No longer available
• AP0295401 Primary transm.
  No longer available

3 Springholder plate AP0259570 No longer available

• AP0259570 Springholder plate
  No longer available

4 Lined clutch disc Available AP0259053

•

  Clutch plates thickness: 3,10 mm Piaggio Group · AP0259053 · Quantity needed: 6 Available

  € 25,26

  Add to cart

5 Clutch disc 1 MM Available AP0259559

•

  Clutch plates thickness: 1,00 mm Piaggio Group · AP0259559 · Quantity needed: 6 Available

  € 7,68

  Add to cart

6 Clutch hub AP0259470 No longer available

• AP0259470 Clutch hub
  No longer available

7 Clutch spring 34,1 MM AP0239625 No longer available

• AP0239625 Clutch spring 34,1 MM Quantity needed: 6
  No longer available

8 Pressure plate cpl. Available AP0259165

•

  Clutch pressure plate Piaggio Group · AP0259165 Available

  € 77,83

  Add to cart

9 Springs plate guide AP0259420 No longer available

• AP0259420 Springs plate guide
  No longer available

10 Hex screw Available AP0241770

•

  Hexagon Screw M5x25 Piaggio Group · AP0241770 · Quantity needed: 6 Available

  € 2,38

  Add to cart
