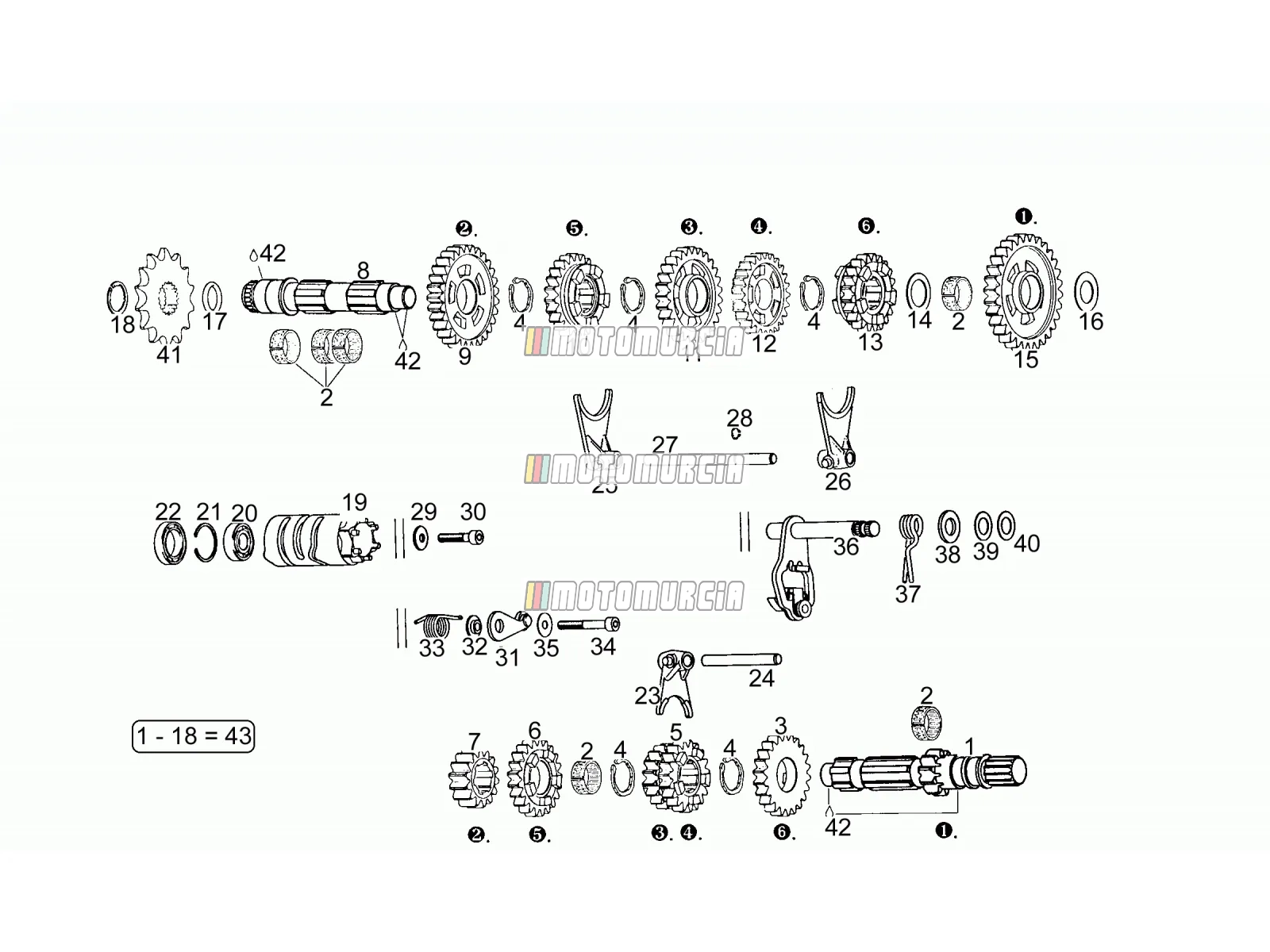

Exploded view — Gear Box

Products

1 Primary gear shaft Z=10 AP0220300 No longer available

• AP0220300 Primary gear shaft Z=10
  No longer available

2 Roller cage 21x25x10 AP0232742 No longer available

• AP0232742 Roller cage 21x25x10 Quantity needed: 6
  No longer available

3 Gear Z=22 Available AP0634125

•

  Gear Wheel Number of Teeth: 22 Piaggio Group · AP0634125 Available

  € 138,23

  Add to cart

4 Seeger AP0245730 No longer available

• AP0245730 Seeger Quantity needed: 5
  No longer available

5 Gear Z=17/19 AP0634095 No longer available

• AP0634095 Gear Z=17/19
  No longer available

6 Gear Z=21 AP0634105 No longer available

• AP0634105 Gear Z=21
  No longer available

7 2nd pinion gear Z=14 Backorder AP0634085

•

  Gear Wheel Piaggio Group · AP0634085 Backorder

  € 87,12

  Add to cart

8 Driven shaft AP0220280 No longer available

• AP0220280 Driven shaft
  No longer available

9 Gear Z=29 AP0234968 No longer available

• AP0234968 Gear Z=29
  No longer available

10 Gear Z=24 AP0634115 No longer available

• AP0634115 Gear Z=24
  No longer available

11 Gear Z=27 Backorder AP0234984

•

  Gear Wheel Number of Teeth: 27 Piaggio Group · AP0234984 Backorder

  € 105,27

  Add to cart

12 Gear Z=25 AP0234858 No longer available

• AP0234858 Gear Z=25
  No longer available

13 Gear Z=23 AP0634135 No longer available

• AP0634135 Gear Z=23
  No longer available

14 Washer (21,2/30/1) Available AP0244100

•

  Shim 21,2x30x1 mm Piaggio Group · AP0244100 Available

  € 13,25

  Add to cart

15 Gear Z=30 AP0634065 No longer available

• AP0634065 Gear Z=30
  No longer available

16 Thrust washer 17,2/30/1 AP0227430 No longer available

• AP0227430 Thrust washer 17,2/30/1
  No longer available

17 O-Ring AP0430460 No longer available

• AP0430460 O-Ring
  No longer available

18 Seeger AP0245650 No longer available

• AP0245650 Seeger
  No longer available

19 Shift cam AP0258305 No longer available

• AP0258305 Shift cam
  No longer available

20 Bearing 6001 Backorder AP0232402

•

  Ball bearing 6001, 12x28x8 mm Piaggio Group · AP0232402 Backorder

  € 69,37

  Add to cart

21 Seeger AP0245790 No longer available

• AP0245790 Seeger
  No longer available

22 Bearing AP0632060 No longer available

• AP0632060 Bearing
  No longer available

23 Fork 5-6 V.ta' AP0258138 No longer available

• AP0258138 Fork 5-6 V.ta'
  No longer available

24 Pin M6x70 Available AP0229390

•

  Bolts M6x70 Piaggio Group · AP0229390 Available

  € 15,29

  Add to cart

25 Fork 2-3 speed AP0258128 No longer available

• AP0258128 Fork 2-3 speed
  No longer available

26 Fork 1-4 v.ta' AP0258118 No longer available

• AP0258118 Fork 1-4 v.ta'
  No longer available

27 Fork shaft Backorder AP0258200

•

  Gearshift Piaggio Group · AP0258200 Backorder

  € 78,87

  Add to cart

28 Seeger AP0245570 No longer available

• AP0245570 Seeger
  No longer available

29 Washer Available AP0827305

•

  Shim 6,2x18x2 mm Piaggio Group · AP0827305 Available

  € 12,96

  Add to cart

30 Screw Available AP0840880

•

  Screw M6x30 Piaggio Group · AP0840880 Available

  € 6,21

  Add to cart

31 Index assy. lever Available AP0248326

•

  Index Lever Piaggio Group · AP0248326 Available

  € 70,97

  Add to cart

32 Bush Backorder AP0227711

•

  Sleeve Piaggio Group · AP0227711 Backorder

  € 17,32

  Add to cart

33 Index spring AP0239241 No longer available

• AP0239241 Index spring
  No longer available

34 Screw AP0241821 No longer available

• AP0241821 Screw
  No longer available

35 Washer Backorder AP0827307

•

  Shim 6,2x18x0,5 mm Piaggio Group · AP0827307 Backorder

  € 12,96

  Add to cart

36 Gearshift shaft+pawl assy Available AP0220295

•

  Gear Shift Shaft Piaggio Group · AP0220295 Available

  € 371,28

  Add to cart

37 Spring AP0239252 No longer available

• AP0239252 Spring
  No longer available

38 Washer Available AP0427690

•

  Washer Piaggio Group · AP0427690 Available

  € 4,72

  Add to cart

39 Thrust washer 12,5/21,5 AP0827261 No longer available

• AP0827261 Thrust washer 12,5/21,5
  No longer available

40 Washer AP0227451 No longer available

• AP0227451 Washer
  No longer available

41 Pinion Z=14 AP0236061 No longer available

• AP0236061 Pinion Z=14
  No longer available
• AP0236064 Pinion Z=17
  No longer available
• AP0236063 Pinion Z=16
  No longer available
•

  Rear Sprocket Number of Teeth: 15 Piaggio Group · AP0236062 Available

  € 38,57

  Add to cart

42 Loctite Anti Seize 10 GR. AP0297434 No longer available

• AP0297434 Loctite Anti Seize 10 GR.
  No longer available

43 Gear box assy 6 v.ta' AP0281210 No longer available

• AP0281210 Gear box assy 6 v.ta'
  No longer available
