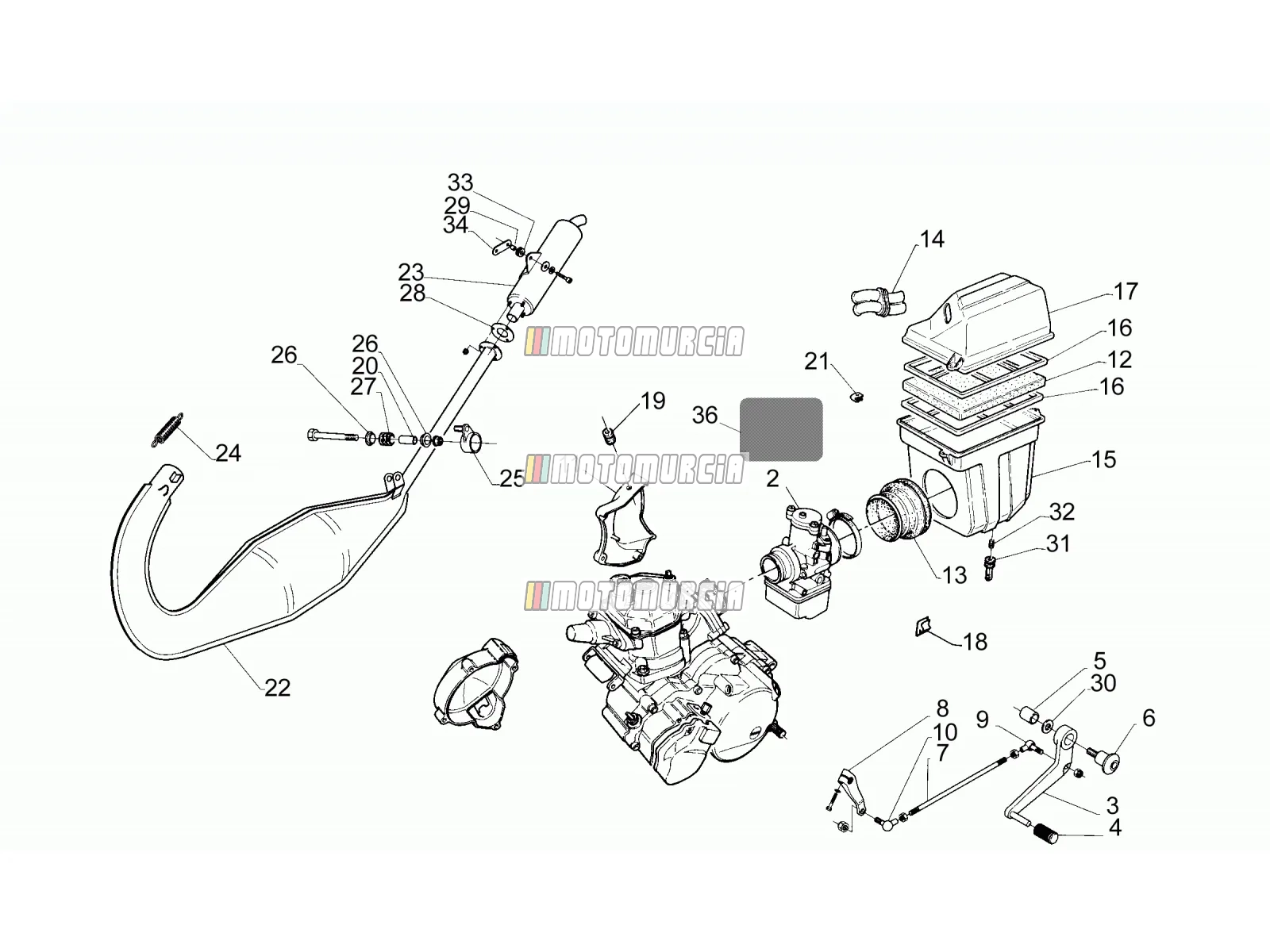

Exploded view — Exhaust Unit

Products

2 Carburettor PHBH 28 BD AP8106347 No longer available

• AP8106347 Carburettor PHBH 28 BD
  No longer available
• AP8106314 Carburettor
  • Full power version
  • Sport Production version
  No longer available

3 Gear change pedal Available AP8106013

• • Full power version
  • Racing version
  • Version 11 kW


  Gear Lever Piaggio Group · AP8106013 Available · Shipped in 3–5 working days

  € 59,83

  Add to cart

4 Spacer (rubber) Available AP8220189

• • Factory version


  Pedal Rubber Piaggio Group · AP8220189 Available · Shipped in 3–5 working days

  € 11,91

  Add to cart

5 Spacer AP8121147 No longer available

• AP8121147 Spacer
  No longer available

6 Brake lever pin Available AP8121284

•

  Bolts Piaggio Group · AP8121284 Available · Shipped in 3–5 working days

  € 18,45

  Add to cart

7 Gearbox linkage rod AP8121967 No longer available

• AP8121967 Gearbox linkage rod
  No longer available

8 Gearbox connecting rod AP8135726 No longer available

• AP8135726 Gearbox connecting rod
  No longer available

9 RH ball joint M6 Available AP8210007

•

  Ball joint right, M6 Piaggio Group · AP8210007 Available · Shipped in 3–5 working days

  € 17,93

  Add to cart

10 Left ball joint M6 Available AP8110053

•

  Universal Joint left Piaggio Group · AP8110053 Available · Shipped in 3–5 working days

  € 17,93

  Add to cart

11 Sprocket cover, grey AP8106315 No longer available

• AP8106315 Sprocket cover, grey
  No longer available

12 Air filter AP81020800P No longer available

• AP81020800P Air filter
  No longer available

  Alternatives from other brands



  AIR FILTER APRILIA Twin Air · 157025 Available · Shipped in 4–7 working days

  € 9,26

  Add to cart



  PRE-OILED AIR FILTER (FR) APRILIA Twin Air · 158501FRX Backorder · Shipped in 2–5 weeks

  € 26,31

  Add to cart

13 Air bellow Available AP8120783

• • Open hole
  • Year of manufacture: 1996
  • Year of manufacture: 1997


  Bushing Piaggio Group · AP8120783 Available · Shipped in 3–5 working days

  € 33,54

  Add to cart

14 Intake hose Available AP8120748

• • 80 km/h speed
  • Full power version
  • Racing version


  Intake Boot Piaggio Group · AP8120748 Available · Shipped in 3–5 working days

  € 30,32

  Add to cart

15 Filter housing base Backorder AP8178561

• • Euro 2 homologation (frame ZD4SF)
  • Euro 2 homologation (frame ZD4SFF)


  Air Filter Box Piaggio Group · AP8178561 Backorder · Shipped in 2–4 weeks

  € 44,43

  Add to cart

16 Filter guard Available AP8131121

•

  Grid Piaggio Group · AP8131121 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 8,69

  Add to cart

17 Filter housing cover Backorder AP8168042

• • Euro 2
  • Full power version
  • Year of manufacture: 2006
  • Year of manufacture: 2009


  Air Filter Cover Piaggio Group · AP8168042 Backorder · Shipped in 2–4 weeks

  € 29,43

  Add to cart

18 Cable-guide AP8120708 No longer available

• AP8120708 Cable-guide
  • Challenge version United States
  • Year of manufacture: 1998
  • Year of manufacture: 2003
  No longer available

19 Damper Available AP8120405

•

  Sheet nut Piaggio Group · AP8120405 Available · Shipped in 3–5 working days

  € 6,27

  Add to cart

20 Spacer Available AP8121058

•

  Spacer Piaggio Group · AP8121058 Available · Shipped in 3–5 working days

  € 3,79

  Add to cart

21 Clip nuts (M6) Available 254485

• • Year of manufacture: 2012
  • Year of manufacture: 2013


  Sheet nut Piaggio Group · 254485 · Quantity needed: 5 Available · Shipped in 3–5 working days

  € 2,04

  Add to cart

22 Exhaust AP8119375 No longer available

• AP8119375 Exhaust
  • Full power version
  • Sport Production version
  No longer available
• AP8119387 Silencer sport-pro
  • Sport Production version
  No longer available

23 Exhaust AP8119383 No longer available

• AP8119383 Exhaust
  • Full power version
  • Sport Production version
  No longer available

24 Exhaust spring Available AP8101259

•

  Spring Piaggio Group · AP8101259 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 4,49

  Add to cart
• AP8121091 Exhaust spring Quantity needed: 2
  No longer available

25 Exhaust pipe support Backorder AP8135289

•

  Exhaust Mount Piaggio Group · AP8135289 Backorder · Shipped in 2–4 weeks

  € 27,08

  Add to cart

26 Washer AP8101284 No longer available

• AP8101284 Washer Quantity needed: 2
  • Euro 0 homologation (frame ZD4MP)
  No longer available

27 Silentblock AP8101285 No longer available

• AP8101285 Silentblock
  No longer available

28 Exhaust gasket Available AP8120812

•

  Exhaust Gasket Piaggio Group · AP8120812 Available · Shipped in 3–5 working days

  € 9,49

  Add to cart

29 Spacer Available AP8121716

• • ABS Shiver version
  • ABS version
  • Old version


  Sleeve Piaggio Group · AP8121716 Available · Shipped in 3–5 working days

  € 3,80

  Add to cart

30 Washer (spring) Available AP81216976

•

  Washer (spring) Piaggio Group · AP81216976 Available · Shipped in 3–5 working days

  € 1,86

  Add to cart

31 Air box breather pipe AP8101527 No longer available

• AP8101527 Air box breather pipe
  No longer available

32 Breather pipe filter AP8102120 No longer available

• AP8102120 Breather pipe filter
  No longer available

33 Silentblock AP8120638 No longer available

• AP8120638 Silentblock
  No longer available

34 Silencer plate AP8134262 No longer available

• AP8134262 Silencer plate
  No longer available

36 Carburettor protection AP8120852 No longer available

• AP8120852 Carburettor protection
  • Sport Production version
  No longer available
