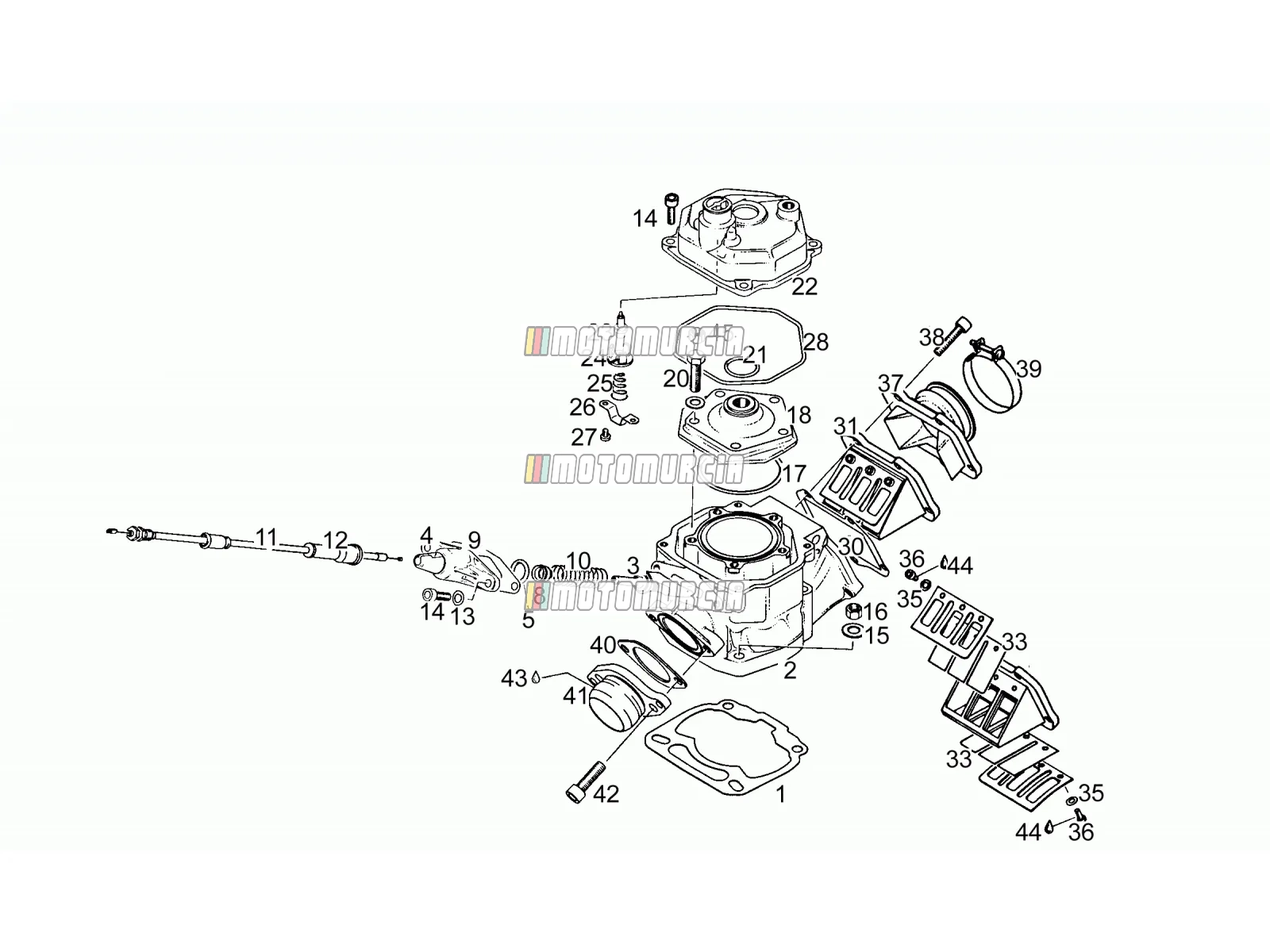

Exploded view — Cylinder

Products

1 Gasket - cylinder base AP0650096 No longer available

• AP0650096 Gasket - cylinder base
  No longer available
•

  Cylinder Base Gasket thickness: 0,30 mm Piaggio Group · AP0650095 Available

  € 11,50

  Add to cart
• AP0650097 Cylinder base gasket 0,8
  No longer available

2 Worked cylinder AP8106365 No longer available

• AP8106365 Worked cylinder
  No longer available
•

  Cylinder without piston Piaggio Group · AP0223614 Available

  € 1.647,86

  Add to cart
• AP0223615 Cylinder
  No longer available

3 Exhaust valve Available AP0253722

•

  Power valve blade Piaggio Group · AP0253722 Available

  € 214,25

  Add to cart

4 Valve body Available AP0253465

•

  Power valve blade Piaggio Group · AP0253465 Available

  € 254,20

  Add to cart

5 O-Ring AP0230880 No longer available

• AP0230880 O-Ring
  No longer available

8 Valve stem seal AP0230810 No longer available

• AP0230810 Valve stem seal
  No longer available

9 Gasket 0,8 Available AP0250975

•

  Gasket thickness: 0,80 mm Piaggio Group · AP0250975 Available

  € 9,56

  Add to cart

10 Spring AP0239052 No longer available

• AP0239052 Spring
  No longer available

11 Elect.rave valve cable AP0297746 No longer available

• AP0297746 Elect.rave valve cable
  No longer available

12 Rubber cap AP0860460 No longer available

• AP0860460 Rubber cap
  No longer available

13 5 - Spring washer B6 Backorder AP0845020

•

  Snap Ring Piaggio Group · AP0845020 · Quantity needed: 2 Backorder

  € 1,36

  Add to cart

14 Screw AP0241930 No longer available

• AP0241930 Screw Quantity needed: 5
  No longer available

15 Washer AP0250311 No longer available

• AP0250311 Washer Quantity needed: 4
  No longer available

16 Nut AP0942674 No longer available

• AP0942674 Nut Quantity needed: 4
  No longer available

17 O-Ring (64x2) Available AP0250160

•

  O-Ring 64x2 mm Piaggio Group · AP0250160 Available

  € 10,68

  Add to cart

18 Cylinder head Available 2R000073

•

  Cylinder Head Piaggio Group · 2R000073 Available

  € 239,14

  Add to cart
• AP0223383 Cylinder head cover
  No longer available

20 Stud bolt AP0940065 No longer available

• AP0940065 Stud bolt Quantity needed: 5
  No longer available
• AP0940485 Screw Quantity needed: 5
  No longer available

21 O-Ring (23,3x2,4) Available AP0430782

•

  O-Ring 23,3x2,4 mm Piaggio Group · AP0430782 Available

  € 5,87

  Add to cart

22 Cylinder head cover AP0613101 No longer available

• AP0613101 Cylinder head cover
  No longer available

23 Thermostat AP0222120 No longer available

• AP0222120 Thermostat
  No longer available
• AP0222122 Thermostat
  No longer available

24 Maintenance Available AP0222175

•

  Mount for thermostat Piaggio Group · AP0222175 Available

  € 18,59

  Add to cart

25 Spring AP0239950 No longer available

• AP0239950 Spring
  No longer available

26 Bracket Available AP0222202

•

  Shackle Piaggio Group · AP0222202 Available

  € 20,46

  Add to cart

27 Screw (spec) AP0240195 No longer available

• AP0240195 Screw (spec) Quantity needed: 2
  No longer available

28 O-Ring (105x2,5) Available AP0250280

•

  Oil seal 105x2,5 mm Piaggio Group · AP0250280 Available

  € 5,72

  Add to cart

30 Intake manifold Gasket AP0250521 No longer available

• AP0250521 Intake manifold Gasket
  No longer available

31 Reed valve AP0224389 No longer available

• AP0224389 Reed valve
  No longer available

33 Reed valve AP0224389 No longer available

• AP0224389 Reed valve Quantity needed: 2
  No longer available
• AP8106266 Blade C40 Quantity needed: 2
  No longer available

35 Break washer A4 Backorder AP0945758

•

  Spring Washer Piaggio Group · AP0945758 · Quantity needed: 6 Backorder

  € 2,53

  Add to cart

36 Round screw M4x8 AP0940235 No longer available

• AP0940235 Round screw M4x8 Quantity needed: 6
  No longer available

37 Carburettor flange AP0267915 No longer available

• AP0267915 Carburettor flange
  No longer available

38 Screw (M6x25) AP0840861 No longer available

• AP0840861 Screw (M6x25) Quantity needed: 5
  No longer available

39 Clamp AP0251850 No longer available

• AP0251850 Clamp
  No longer available

40 Exhaust gasket Available AP0250271

•

  Gasket Piaggio Group · AP0250271 Available

  € 22,65

  Add to cart

41 Exhaust flange cpl. AP8119402 No longer available

• AP8119402 Exhaust flange cpl.
  No longer available
• AP0273970 Exhaust flange cpl.
  No longer available

42 Screw (M8x20) Backorder AP0240071

•

  Screw M8x20 Piaggio Group · AP0240071 · Quantity needed: 2 Backorder

  € 4,63

  Add to cart

43 Loctite Anti Seize 10 GR. AP0297434 No longer available

• AP0297434 Loctite Anti Seize 10 GR.
  No longer available

44 Loctite (green) 648 5gr. AP0899788 No longer available

• AP0899788 Loctite (green) 648 5gr.
  No longer available

45 Nut (M8) AP0242209 No longer available

• AP0242209 Nut (M8) Quantity needed: 5
  No longer available
