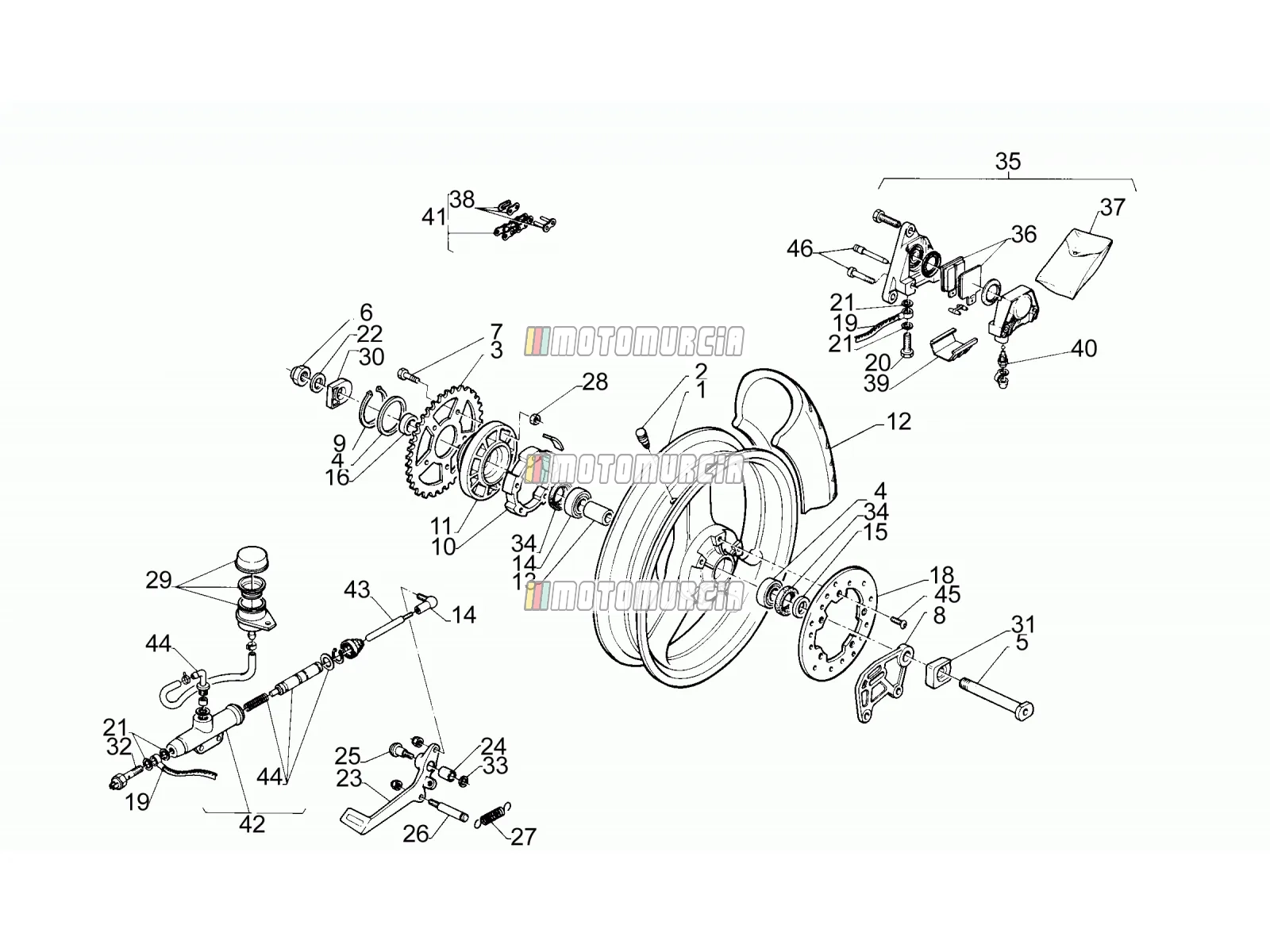

Exploded view — Rear Wheel

Products

1 Rear wheel(complete) AP8108621 No longer available

• AP8108621 Rear wheel(complete)
  No longer available
• AP8108565 Rear wheel, black
  No longer available

2 Tubeless tyre valve Available AP8101744

•

  Tyre valves Piaggio Group · AP8101744 Available

  € 16,01

  Add to cart

3 Chain ring Z=40 AP8107116 No longer available

• AP8107116 Chain ring Z=40
  No longer available

4 Snap ring Available AP8102296

•

  Snap-in Ring Piaggio Group · AP8102296 Available

  € 10,94

  Add to cart

5 Rear wheel spindle Rear 854963 No longer available

• 854963 Rear wheel spindle Rear
  No longer available

6 Nut Available AP8125763

•

  Standard nut Piaggio Group · AP8125763 Available

  € 18,07

  Add to cart

7 Hex screw M8x25 (M8x25) AP8125635 No longer available

• AP8125635 Hex screw M8x25 (M8x25) Quantity needed: 5
  No longer available

8 Brake hanger plate Backorder AP8134911

•

  Bracket Piaggio Group · AP8134911 Backorder

  € 87,97

  Add to cart

9 Circlip d.62 Circlip d.62 No longer available

• Circlip d.62
  No longer available
• AP8125668 Circlip chain ring
  No longer available

10 Flexible coupling rubber Available AP8120792

•

  Shock Bearing Piaggio Group · AP8120792 Available

  € 112,40

  Add to cart

11 Crown holder AP8125628 No longer available

• AP8125628 Crown holder
  No longer available

12 Missing description AP No longer available

• AP Missing description
  No longer available

13 Rear wheel ins.spacer Backorder AP8125645

•

  Spacer Piaggio Group · AP8125645 Backorder

  € 41,09

  Add to cart
• AP8125666 Rear wheel ins.spacer
  No longer available

14 Rear wheel bear. AP8125663 No longer available

• AP8125663 Rear wheel bear. Quantity needed: 2
  No longer available
• AP8125873 Rear wheel bear. Quantity needed: 2
  No longer available
• AP8125664 Rear wheel bear. Quantity needed: 2
  No longer available

15 LH wheel ou.spacer AP8125639 No longer available

• AP8125639 LH wheel ou.spacer
  No longer available

16 RH wheel ou.spacer AP8125638 No longer available

• AP8125638 RH wheel ou.spacer
  No longer available
• AP8125667 RH wheel ou.spacer
  No longer available

17 RH ball joint M6 Available AP8210007

•

  Ball joint right, M6 Piaggio Group · AP8210007 Available

  € 17,93

  Add to cart

18 Brake disc AP8113628 No longer available

• AP8113628 Brake disc
  No longer available

19 Brake hose AP8113510 No longer available

• AP8113510 Brake hose
  No longer available

20 Oil pipe screw Available AP8113003

•

  Screw Piaggio Group · AP8113003 Available

  € 2,35

  Add to cart

21 Washer gasket Available AP8113004

• AP8113004 Washer gasket Quantity needed: 4


  Oil seal 10x14x1,6 mm Piaggio Group · AP8113004 Available

  € 2,18

  Add to cart


  Oil seal 10x14x1,6 mm Piaggio Group · Ap8113004 Available

  € 2,18

  Add to cart

22 Washer AP8121852 No longer available

• AP8121852 Washer
  No longer available

23 Rear brake lever AP8132635 No longer available

• AP8132635 Rear brake lever
  No longer available

24 Spacer AP8121147 No longer available

• AP8121147 Spacer
  No longer available

25 Brake lever pin Available AP8121284

•

  Bolts Piaggio Group · AP8121284 Available

  € 18,45

  Add to cart

26 Springs fixing pin AP8121835 No longer available

• AP8121835 Springs fixing pin
  No longer available

27 Coil pull spring * Available AP8121118

•

  Spring Piaggio Group · AP8121118 Available

  € 3,17

  Add to cart

28 Self-locking nut M8 AP8125636 No longer available

• AP8125636 Self-locking nut M8
  No longer available

29 Oil tank AP8213446 No longer available

• AP8213446 Oil tank
  No longer available

30 RH chain guide plate, br. Backorder AP8120807

•

  Spacer Piaggio Group · AP8120807 Backorder

  € 12,21

  Add to cart

31 LH chain guide plate, br. Available AP8120806

•

  Spacer Piaggio Group · AP8120806 Available

  € 12,21

  Add to cart

32 Brake light switch Available AP8124479

•

  Stop light switch Piaggio Group · AP8124479 Available

  € 39,45

  Add to cart

33 Washer (spring) Available AP81216976

•

  Washer (spring) Piaggio Group · AP81216976 Available

  € 1,86

  Add to cart

34 Oil seal AP8125647 No longer available

• AP8125647 Oil seal
  No longer available

35 Rear caliper Rear AP8133570 No longer available

• AP8133570 Rear caliper Rear
  No longer available

36 Brake pads Available AP8113651

•

  Brake pad set Piaggio Group · AP8113651 Available

  € 39,12

  Add to cart

37 Brake caliper rev. kit AP8113198 No longer available

• AP8113198 Brake caliper rev. kit
  No longer available

38 Connecting link AP8107043 No longer available

• AP8107043 Connecting link
  No longer available

39 Brake caliper cover AP8113117 No longer available

• AP8113117 Brake caliper cover
  No longer available

40 Air bleed valve Available AP8113006

•

  Bleeder Screw Grimeca Piaggio Group · AP8113006 Available

  € 30,33

  Add to cart

41 Chain cpl conn.link AP8107110 No longer available

• AP8107110 Chain cpl conn.link
  No longer available

42 Rear master cyl.w/out tank AP8113254 No longer available

• AP8113254 Rear master cyl.w/out tank
  No longer available

43 Rear master cyl.rod Backorder AP8221074

•

  Bar Piaggio Group · AP8221074 Backorder

  € 6,63

  Add to cart

44 Rear pump rev. kit AP8113322 No longer available

• AP8113322 Rear pump rev. kit
  No longer available

45 Screw Available 672380

•

  Screw M6x20 Piaggio Group · 672380 · Quantity needed: 6 Available

  € 1,48

  Add to cart

46 Fixing pin AP8113602 No longer available

• AP8113602 Fixing pin
  No longer available
