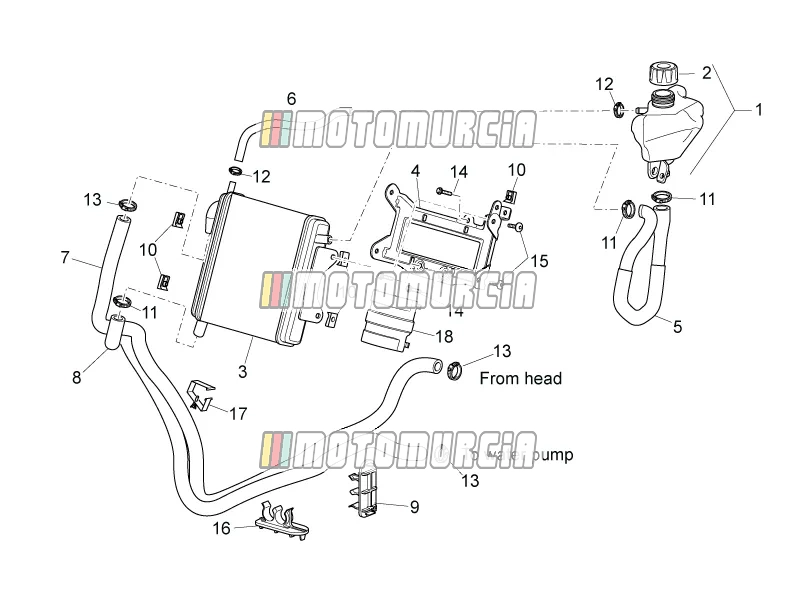

Exploded view — Cooling System

‹ Back to model
Aprilia SR 50 R 2018 Aprilia SR 50 R 2018
Cooling System

Products

1 Expansion tank Backorder AP8268259
2 Expansion tank plug Available AP8570122
  • Screw Piaggio Group · AP8570122 Available
    € 43,44
3 Radiator - water cooler Backorder AP8202406
  • Radiator grey Piaggio Group · AP8202406 Backorder
    € 440,71
4 Water cooler support Available AP8234232
  • Bracket Piaggio Group · AP8234232 Available
    € 27,55
5 Water hose Backorder AP8144691
  • Hose Piaggio Group · AP8144691 Backorder
    € 48,46
6 Radiator-expansion tank vent pipe Backorder CM007021
  • Hose Piaggio Group · CM007021 Backorder
    € 5,26
7 Water hose Backorder AP8220668
  • Radiator hose Piaggio Group · AP8220668 Backorder
    € 86,50
8 Water cooler-pump tube Backorder 1B005152
  • Radiator hose Piaggio Group · 1B005152 Backorder
    € 77,34
9 Water tubes holder Backorder AP8234218
  • Clip Piaggio Group · AP8234218 Backorder
    € 25,59
10 Clip nuts (M5) Available AP8102375
  • Sheet nut M5 Piaggio Group · AP8102375 · Quantity needed: 8 Available
    € 2,47
11 Clamp Available AP8102349
12 Clamp Available AP8102765
13 Clamp Available AP8102732
  • Clamp Piaggio Group · AP8102732 · Quantity needed: 3 Available
    € 10,14
14 Screw Available 598839
15 Screw Available 2B014101
  • Screw Piaggio Group · 2B014101 · Quantity needed: 4 Available
    € 3,78
17 Water tubes holder AP8134460 No longer available
  • AP8134460 Water tubes holder
    No longer available
18 Wiring cover Available AP8268254
