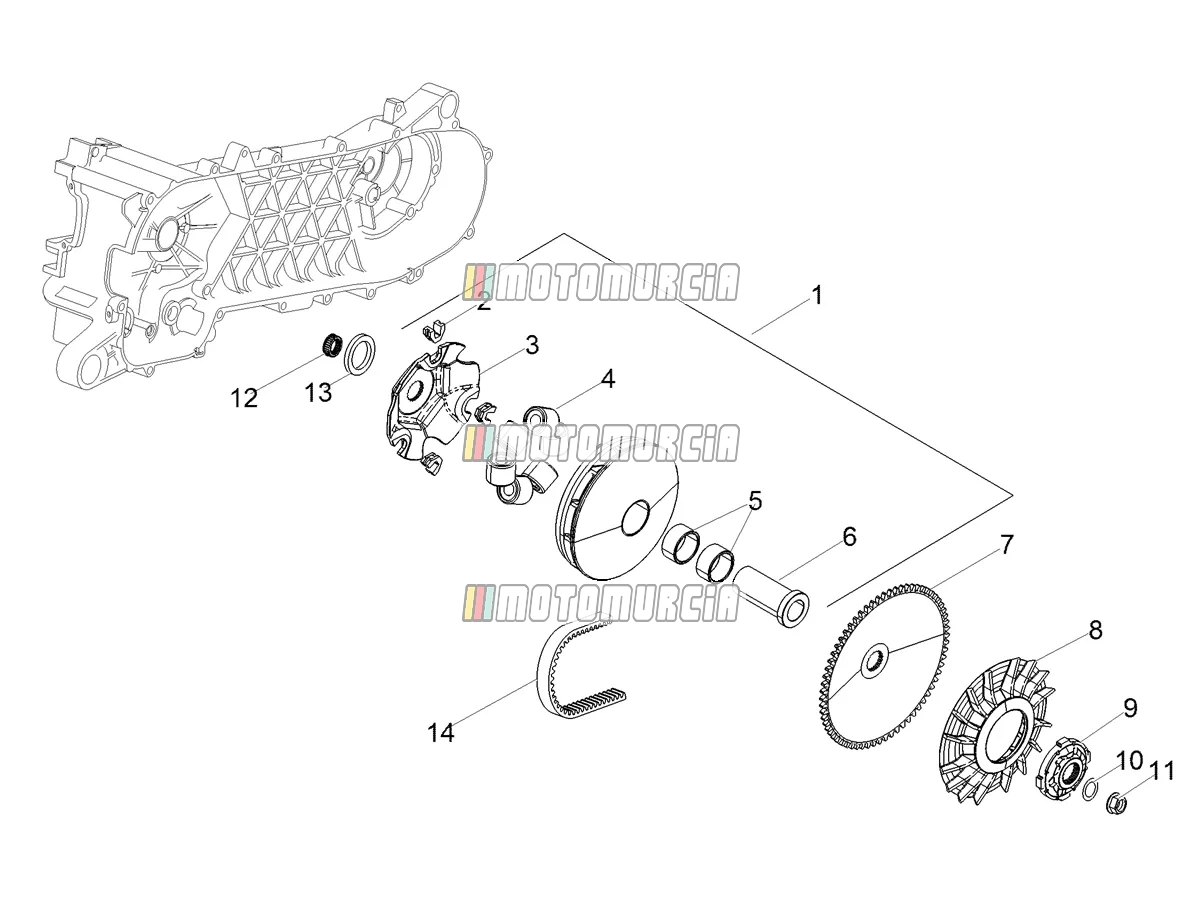

Exploded view — Half-pulley Assy., Driving

Products

1 Variator Available CM270115

•

  Pulley rear Piaggio Group · CM270115 Available

  € 57,14

  Add to cart

2 Variator slider Available 289931

•

  Slide Piaggio Group · 289931 · Quantity needed: 3 Available

  € 1,23

  Add to cart

3 Roller housing back plate Available 480227

•

  Calotte Piaggio Group · 480227 Available

  € 15,60

  Add to cart

4 Roller complete Available CM270202

•

  Variator roller 19x15,5 mm, 6,0 g, Content: 1 Stk Piaggio Group · CM270202 Available

  € 6,16

  Add to cart

5 Bush Available 436854

•

  Sleeve Piaggio Group · 436854 · Quantity needed: 2 Available

  € 6,55

  Add to cart

6 Spacer Available CM291006

•

  Converter Hub Piaggio Group · CM291006 Available

  € 24,08

  Add to cart

7 V-Belt Pulley Available 479561

•

  Toothed Pulley Wheel Piaggio Group · 479561 Available

  € 28,70

  Add to cart

8 Fan Available 845611

•

  Fan Wheel Piaggio Group · 845611 Available

  € 6,26

  Add to cart

9 Teethed bush Available 8770756

•

  Star disk Piaggio Group · 8770756 Available

  € 17,84

  Add to cart

10 Washer Available 265300

•

  Washer Piaggio Group · 265300 Available

  € 1,45

  Add to cart

11 Flanged nut M10x1,25 Available 289519

•

  Flywheel nut M10x1.25 Piaggio Group · 289519 Available

  € 1,52

  Add to cart

12 Toothed pulley Available 286158

•

  Gear Wheel Piaggio Group · 286158 Available

  € 13,75

  Add to cart

13 Spacer Available 479495

•

  Spacer Ring Piaggio Group · 479495 Available

  € 6,55

  Add to cart

14 V-Belt Available 436864

•

  V-Belt Piaggio Group · 436864 Available

  € 29,50

  Add to cart
