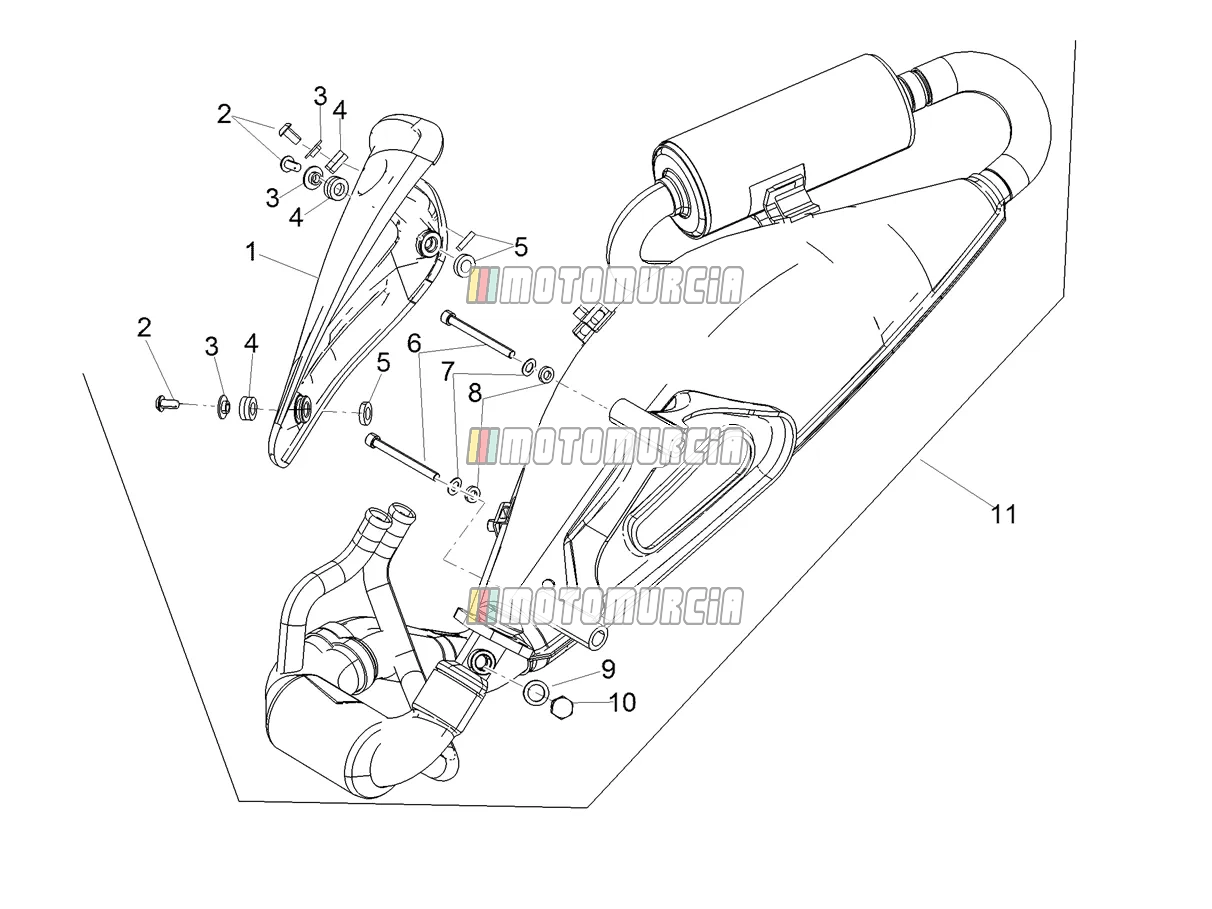

Exploded view — Exhaust Pipe

Products

1 Silencer protector 827845 No longer available

• 827845 Silencer protector
  No longer available

2 Screw Available 651014

•

  Screw M5x10 Piaggio Group · 651014 · Quantity needed: 3 Available

  € 1,48

  Add to cart

3 Spacer Available 826118

•

  Washer Piaggio Group · 826118 · Quantity needed: 3 Available

  € 1,43

  Add to cart

4 Damper Available 487665

•

  Rubber bellows Piaggio Group · 487665 · Quantity needed: 3 Available

  € 2,67

  Add to cart

5 Spacer Available 826117

•

  Washer Piaggio Group · 826117 · Quantity needed: 3 Available

  € 1,32

  Add to cart

6 Screw Available 845591

•

  Screw M8x75 Piaggio Group · 845591 · Quantity needed: 2 Available

  € 1,80

  Add to cart

7 Washer Available 834187

•

  Washer 16x8,2x2,2 mm Piaggio Group · 834187 · Quantity needed: 2 Available

  € 1,31

  Add to cart

8 Nut Available 833494

•

  Standard nut Piaggio Group · 833494 · Quantity needed: 2 Available

  € 3,28

  Add to cart

9 Washer Available 016195

•

  Washer Piaggio Group · 016195 Available

  € 4,09

  Add to cart

10 Screw Available 433122

•

  CO-Control Screw M10x8x1 Piaggio Group · 433122 · Quantity needed: 2 Available

  € 4,96

  Add to cart

11 Exhaust Available 1A017714

•

  Exhaust Piaggio Group · 1A017714 Available

  € 333,09

  Add to cart
