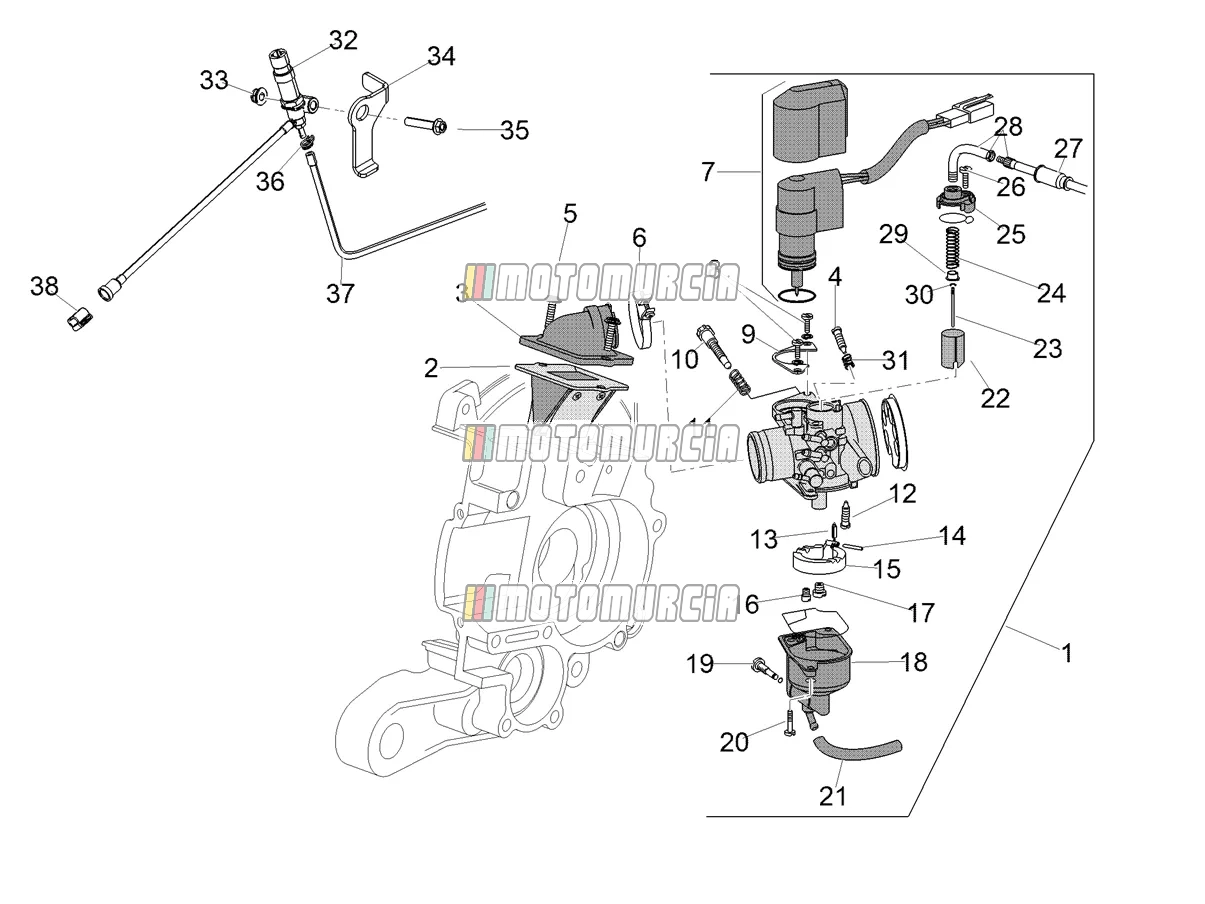

Exploded view — Carburettor

‹ Back to model
Aprilia SR 50 R 2018 Aprilia SR 50 R 2018
Carburettor

Products

1 Carburettor cpl. PHVA 17.5 CM290002 No longer available
  • CM290002 Carburettor cpl. PHVA 17.5
    No longer available
2 Reed valve Available 82775R
  • Reed valve Piaggio Group · 82775R Available
    € 47,24
3 Intake Manifold Available 1A008824
4 Air adjuster screw Available CM107701
5 Screw (M6x22) Available 1A000352
  • Screw M6x22 Piaggio Group · 1A000352 · Quantity needed: 2 Available
    € 3,71
6 Clamp 1A006280 No longer available
  • 1A006280 Clamp Quantity needed: 4
    No longer available
7 Starter plunger Available CM105905
8 Screw Available 289575
  • Screw Piaggio Group · 289575 Available
    € 2,41
9 Plate Available 288863
  • Bracket Piaggio Group · 288863 Available
    € 2,77
10 Gas valve adj.screw Available 828074
11 Spring Available 152608
  • Spring Piaggio Group · 152608 Available
    € 1,40
12 Diffuser 210 HA CM106231 No longer available
  • CM106231 Diffuser 210 HA
    No longer available
13 Fuel closing needle Available CM128501
  • Float Needle Piaggio Group · CM128501 Available
    € 13,94
14 Float pin Available 288881
  • Pin Piaggio Group · 288881 Available
    € 2,06
15 Float Available 482916
16 Idle jet (32) Available CM102103
  • Idle Jet Piaggio Group · CM102103 Available
    € 4,34
17 Main jet 58 Available CM101709
  • Jet Piaggio Group · CM101709 Available
    € 6,30
18 Float chamber cpl. Available 1A011739
  • Float Chamber Piaggio Group · 1A011739 Available
    € 74,15
19 Screw Available 432456
  • Screw Piaggio Group · 432456 Available
    € 8,91
20 Screw Available 288862
  • Screw Piaggio Group · 288862 Available
    € 3,36
21 Fuel hose Backorder CM112001
22 Gas valve (17.5) Available CM141710
23 Conical pin Available CM107510
24 Valve gas return spring Available 482942
  • Spring Piaggio Group · 482942 Available
    € 1,69
25 Gas valve cover Available 431654
26 Screw Available 288865
  • Screw Piaggio Group · 288865 Available
    € 1,40
27 Throttle cable cap Available 875551
  • Bonnet Piaggio Group · 875551 Available
    € 8,74
28 Baffle tube Available 113903
  • Guide tube Piaggio Group · 113903 Available
    € 6,92
29 Conical pin clip Available 288873
30 Seeger Available 288872
31 Spring Available 085285
  • Spring Piaggio Group · 085285 Available
    € 1,37
32 Solenoid Available 873270
33 Nut Available AP8152299
34 Solenoid support Backorder 1B005111
  • Bracket Piaggio Group · 1B005111 Backorder
    € 14,75
35 Screw Available B016792
36 Clamp Available AP8120179
37 Depression pipe L. 370 Backorder CM027927
38 Instrument support Available 639632
  • Plug contact Piaggio Group · 639632 Available
    € 8,62
