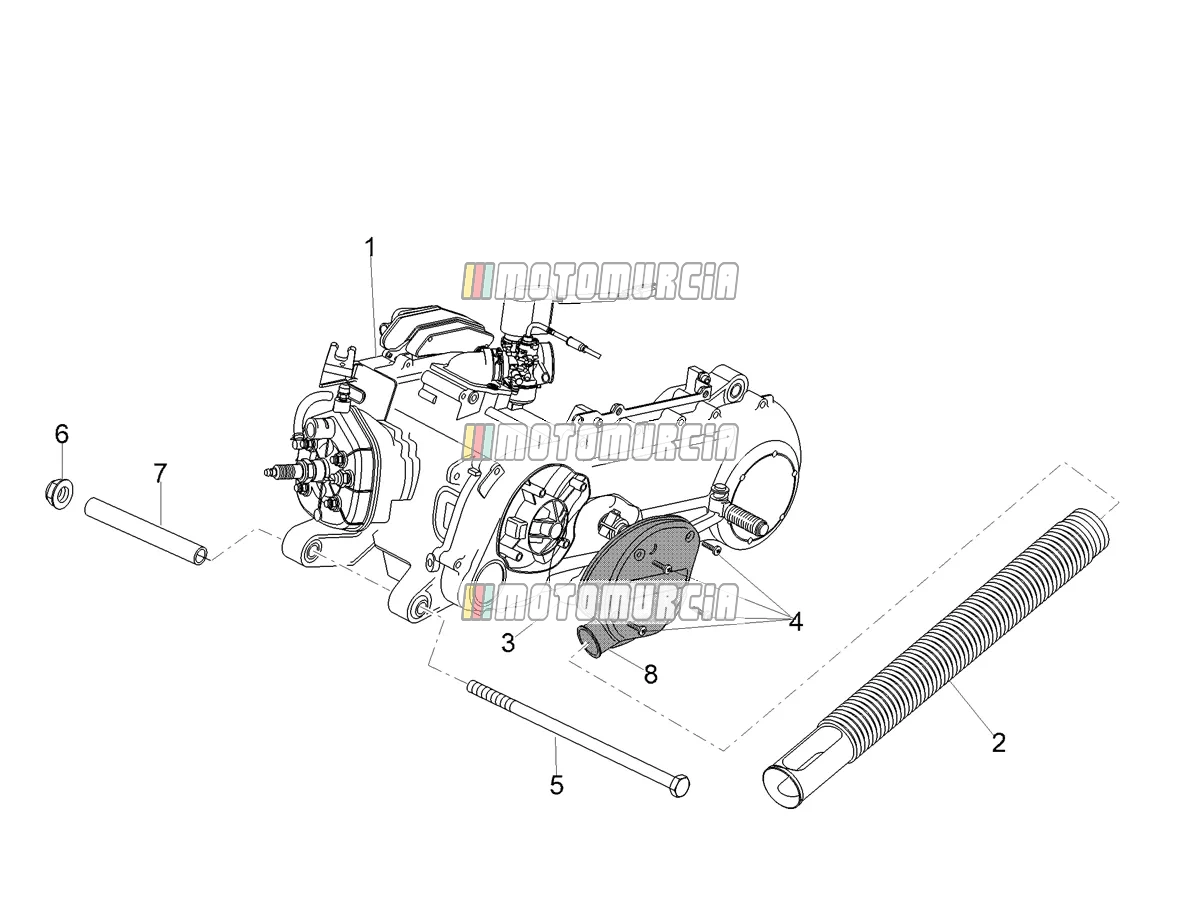

Exploded view — Engine-completing Part-lever

‹ Back to model

Aprilia SR 50 R 2018

Aprilia SR 50 R 2018

Engine-completing Part-lever

Products

1 Engine cpl. Backorder CM2909025

Engine 50 ccm, 2T, Euro 4 Piaggio Group · CM2909025 Backorder

€ 2.298,58

2 Variator air intake Available AP8220704

Air Pipe Piaggio Group · AP8220704 Available

€ 31,99

3 Antidust gasket Backorder 482432

Oil seal Piaggio Group · 482432 Backorder

€ 2,57

4 Screw Available AP8150515

Headlamp Adjustment Screw Piaggio Group · AP8150515 · Quantity needed: 4 Available

€ 2,54

5 Screw Available AP8150412

Hexagon Screw M10x205 Piaggio Group · AP8150412 Available

€ 14,90

6 Nut Available AP8152301

Standard nut Piaggio Group · AP8152301 Available

€ 2,35

7 Spacer Backorder 1C004051

Spacer Piaggio Group · 1C004051 Backorder

€ 5,12

8 Belt cooling cover Available 482404

Housing cover Piaggio Group · 482404 Available

€ 24,20
