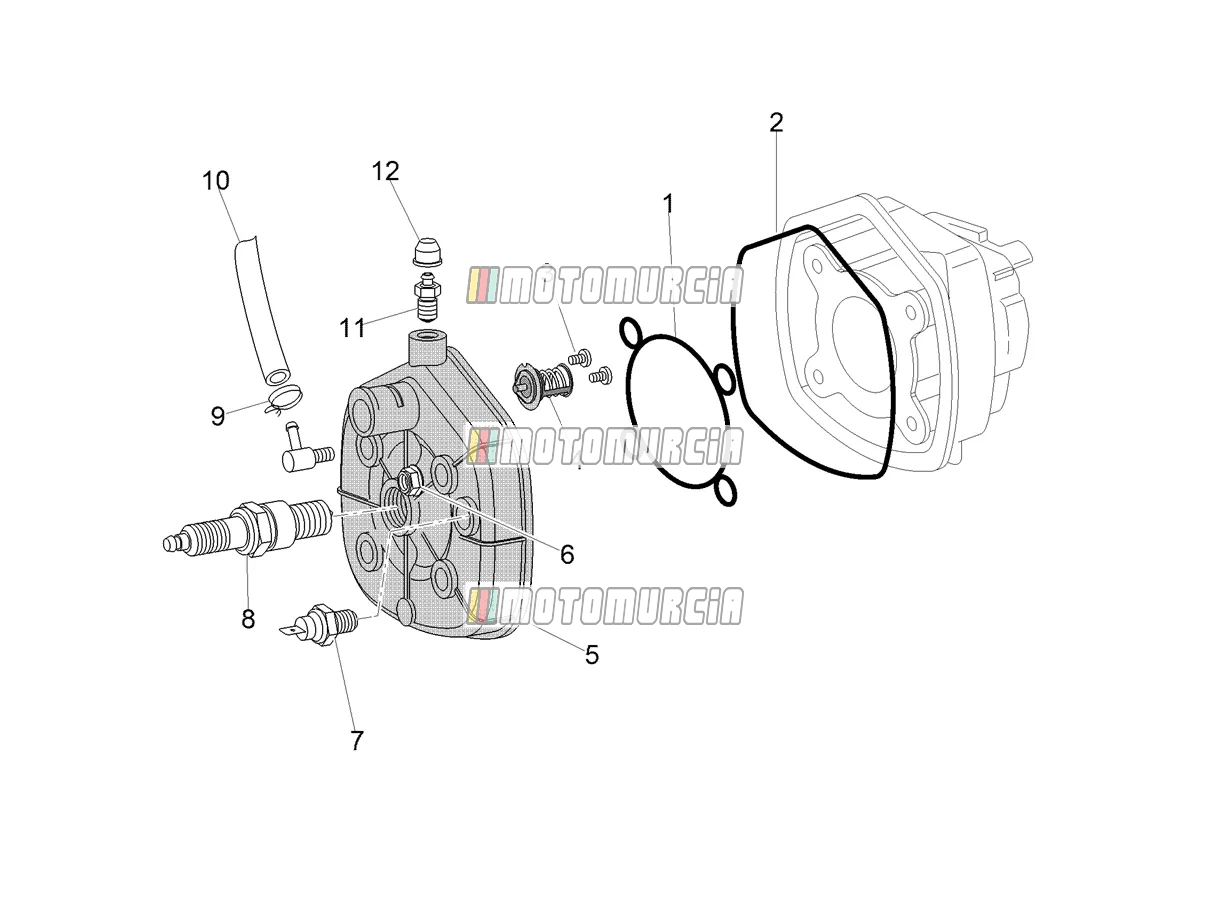

Exploded view — Cylinder Head - Valves

Products

1 Cylinder head gasket Available 288289

•

  Cylinder Head Gasket Piaggio Group · 288289 Available

  € 6,80

  Add to cart

2 Cylinder head gasket Available 482988

•

  Cylinder Head Gasket Piaggio Group · 482988 Available

  € 4,34

  Add to cart

3 Screw Available 256756

•

  Thread Screw Piaggio Group · 256756 Available

  € 1,39

  Add to cart

4 Thermostat Backorder 483395

•

  Thermostat Piaggio Group · 483395 Backorder

  € 50,92

  Add to cart

5 Cylinder head Available 1A008818

•

  Cylinder Head Piaggio Group · 1A008818 Available

  € 119,86

  Add to cart

6 Nut Available 288245

•

  Collar nut M6 Piaggio Group · 288245 · Quantity needed: 4 Available

  € 0,99

  Add to cart

7 Water temperature switch Available 1A021287R

•

  Water temperature probe Piaggio Group · 1A021287R Available

  € 49,07

  Add to cart

8 Spark plug Available 438075

•

  Spark Plugs RN3C098 Piaggio Group · 438075 Available

  € 9,57

  Add to cart

9 Clamp Available CM002901

•

  Clamping Spring Piaggio Group · CM002901 Available

  € 0,99

  Add to cart

10 Head-carb.by-pass pipe Available 484260

•

  Hose Piaggio Group · 484260 Available

  € 13,24

  Add to cart

11 Bleed screw Available 430045

•

  Bleeder Screw Piaggio Group · 430045 Available

  € 2,25

  Add to cart

12 Bleed valve cap Available 063435

•

  Covering Cap Piaggio Group · 063435 Available

  € 2,96

  Add to cart
