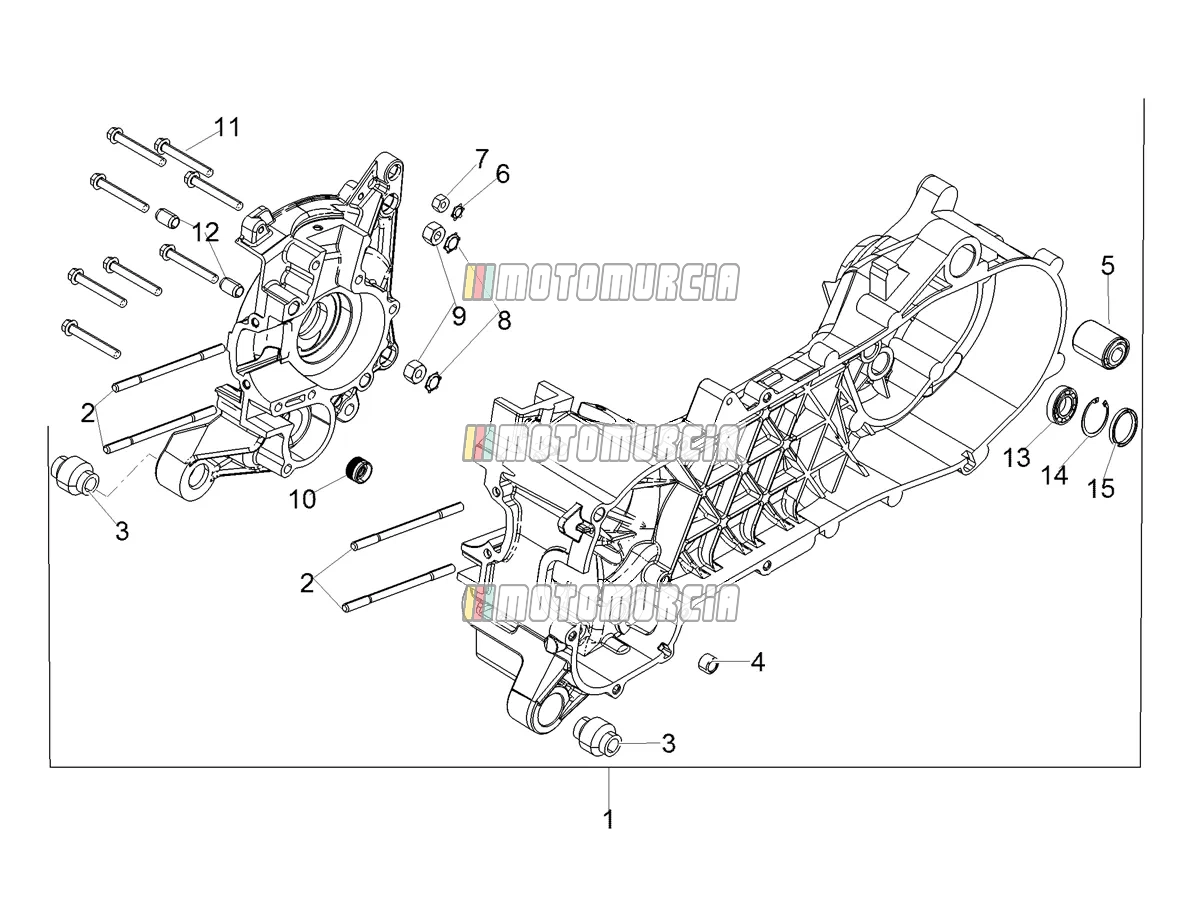

Exploded view — Crankcases I

Products

1 Complete crankcase Backorder 1A0098815

•

  Crankshaft Housing Piaggio Group · 1A0098815 Backorder

  € 500,29

  Add to cart

2 Stud bolt Available 1A003633R

•

  Stud Screw Piaggio Group · 1A003633R · Quantity needed: 4 Available

  € 3,93

  Add to cart

3 Silentblock - engine mount Available 266773

•

  Silentblock Piaggio Group · 266773 · Quantity needed: 2 Available

  € 12,37

  Add to cart

4 Bush Ø8xØ12x8 Available 431860

•

  Bronze Bushes 8x12x8 Piaggio Group · 431860 Available

  € 1,65

  Add to cart

5 Silentblock Available 666991

•

  Silentblock Piaggio Group · 666991 Available

  € 4,88

  Add to cart

6 Seeger Available 287223

•

  Toothed Lock Washer Piaggio Group · 287223 Available

  € 0,99

  Add to cart

7 Nut Available 020006

•

  Standard nut M6 Piaggio Group · 020006 Available

  € 1,52

  Add to cart

8 Seeger Available 113533

•

  Toothed Lock Washer Piaggio Group · 113533 · Quantity needed: 2 Available

  € 2,35

  Add to cart

9 Nut Available 020008

•

  Standard nut M8 Piaggio Group · 020008 · Quantity needed: 2 Available

  € 1,48

  Add to cart

10 Oil seal Available 82510R

•

  Oil seal Piaggio Group · 82510R Available

  € 18,57

  Add to cart

11 Screw Available B017632

•

  Flanged Screw M6x45 Piaggio Group · B017632 · Quantity needed: 8 Available

  € 2,77

  Add to cart

12 Dowel pin Available B015956

•

  Adapter Sleeve 9,5x15 Piaggio Group · B015956 · Quantity needed: 2 Available

  € 1,32

  Add to cart

13 Bearing Available 434735

•

  Wheel bearing 6204 2RSH, 20x47x14 mm Piaggio Group · 434735 Available

  € 18,77

  Add to cart

14 Seeger Available 006647

•

  Circlip Ø 47,00 mm Piaggio Group · 006647 Available

  € 1,29

  Add to cart

15 Gasket ring Available 478498

•

  Shaft Seal Piaggio Group · 478498 Available

  € 6,98

  Add to cart
