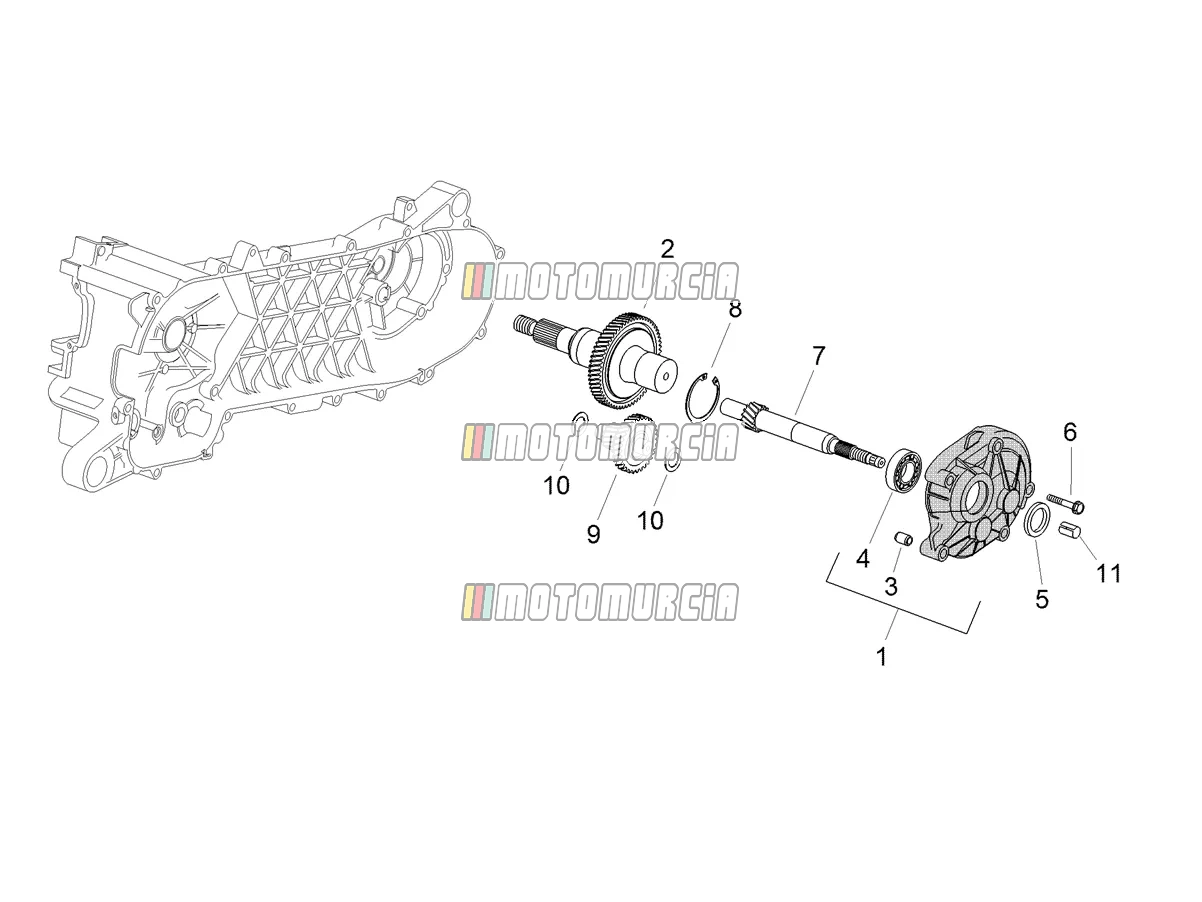

Exploded view — Driven Pulley Shaft

‹ Back to model

Aprilia SR 50 R 2018

Aprilia SR 50 R 2018

Driven Pulley Shaft

Products

1 Wheel hub cover with U.P. Available 4874805

Gear Box Cover Piaggio Group · 4874805 Available

€ 115,71

2 Drive shaft assy 8256935 No longer available

8256935 Drive shaft assy
No longer available

3 Dowel pin Available B015956

Adapter Sleeve 9,5x15 Piaggio Group · B015956 · Quantity needed: 2 Available

€ 1,32

4 Bearing Available 435363

Ball bearing 6203, 17x40x12 mm Piaggio Group · 435363 Available

€ 11,19

5 Gasket ring Available 480066

Shaft Seal 28x17x5 mm Piaggio Group · 480066 Available

€ 12,17

6 Screw Available 1A011120

Flanged Screw M6x40 Piaggio Group · 1A011120 · Quantity needed: 5 Available

€ 0,99

7 Driven pulley shaft z 15 (Z=15) Available 4795934

Input Shaft Number of Teeth: 13 Piaggio Group · 4795934 Available

€ 190,35

8 Seeger Available 480953

Snap-in Ring Piaggio Group · 480953 Available

€ 1,65

9 Transmission shaft Available 4872095

Primary reduction gear Piaggio Group · 4872095 Available

€ 130,93

10 Shim washer Available 288639

Washer Piaggio Group · 288639 · Quantity needed: 2 Available

€ 0,99

11 Compensator ring Available 478197

Sleeve Piaggio Group · 478197 Available

€ 4,85
