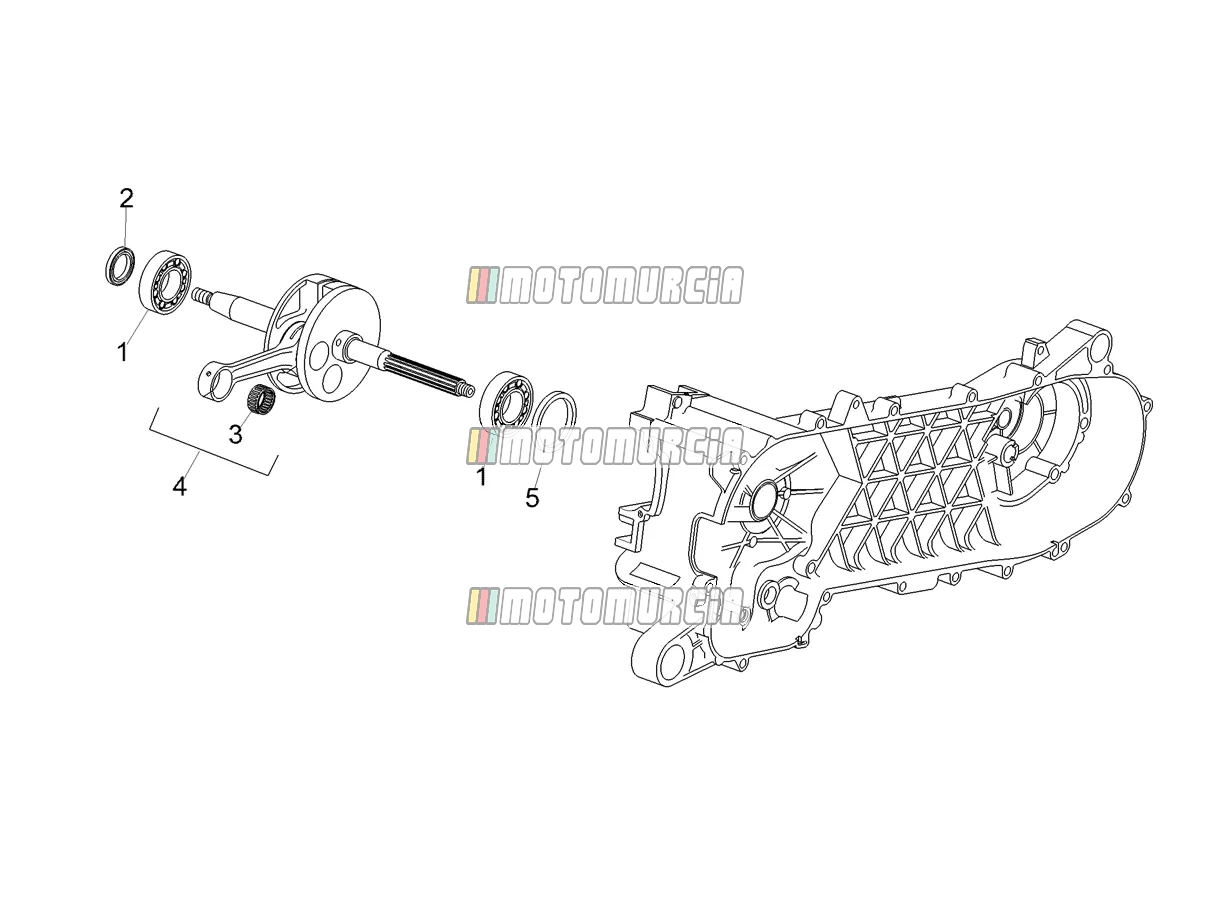

Exploded view — Drive Shaft

‹ Back to model

Aprilia SR 50 R 2018

Aprilia SR 50 R 2018

Drive Shaft

Products

1 Crankshaft bearing Available 431125

Crankshaft bearing 20x52x12 mm Piaggio Group · 431125 · Quantity needed: 2 Available

€ 22,78

2 Flywheel side seal ring Available 482315

Crankshaft seal 18x28x7/7,5 mm Piaggio Group · 482315 Available

€ 10,55

3 Needle bearing Available 500502

Big end bearing blue, Cat. 2, 12x13x16 mm Piaggio Group · 500502 Available

€ 11,60
Big end bearing yellow, Cat. 4, 12x13x16 mm Piaggio Group · 500504 Available

€ 11,60
Big end bearing red, Cat. 1, 12x13x16 mm Piaggio Group · 500501 Available

€ 11,51
Big end bearing white, Cat. 3, 12x13x16 mm Piaggio Group · 500503 Available

€ 11,60

4 Crankshaft Available 8338275

Crankshaft Piaggio Group · 8338275 Available

€ 437,05

5 Gear side seal ring Available 482314

Crankshaft seal 19x30x8 mm Piaggio Group · 482314 Available

€ 9,99
