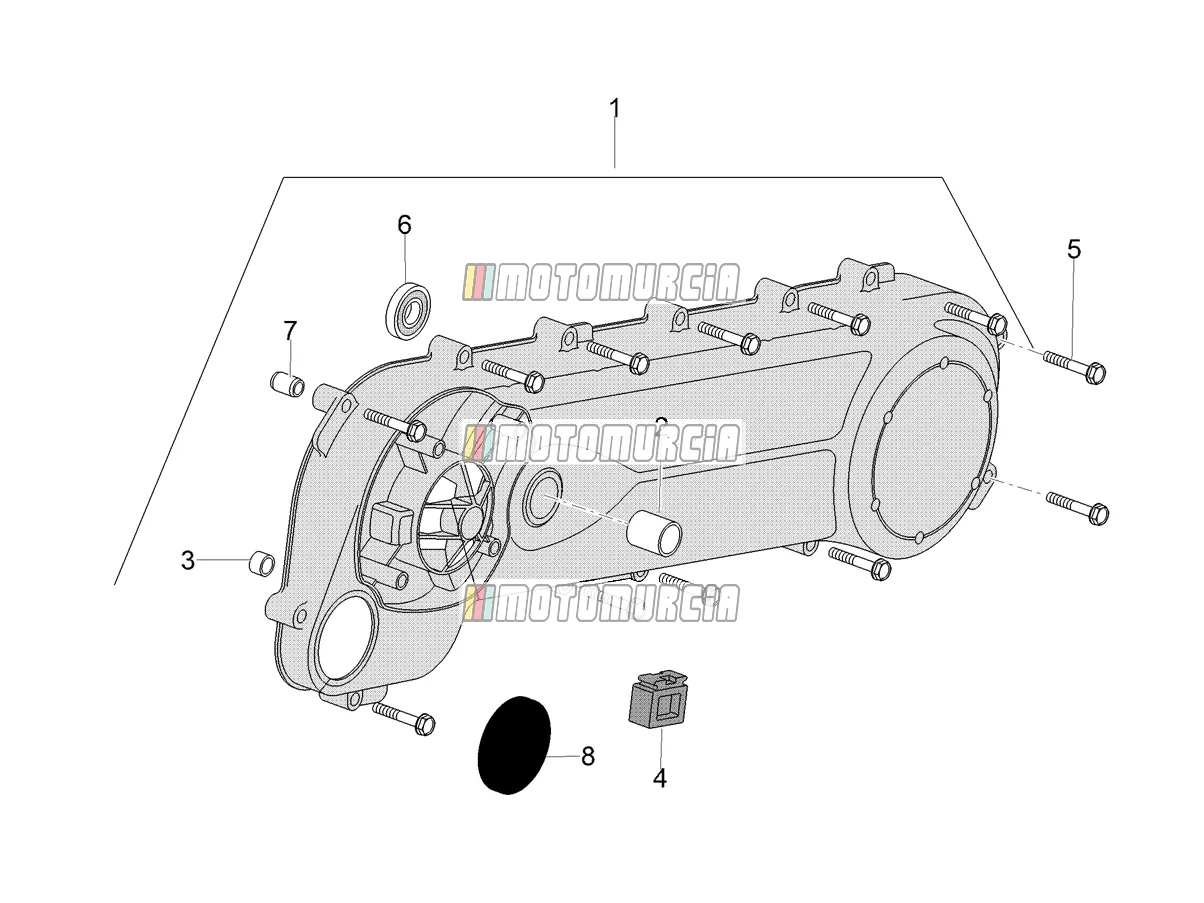

Exploded view — Clutch Cover

‹ Back to model

Aprilia SR 50 R 2018

Aprilia SR 50 R 2018

Clutch Cover

Products

1 Transmission cover Available 8284535

Housing cover Piaggio Group · 8284535 Available

€ 270,64

2 Bush Available 286209

Bronze Bushes Piaggio Group · 286209 Available

€ 2,93

3 Bush Ø8xØ12x8 Available 431860

Bronze Bushes 8x12x8 Piaggio Group · 431860 Available

€ 1,65

4 Stand end stop Available 463872

Rubber stop Piaggio Group · 463872 Available

€ 3,18

5 Screw Available 414838

Screw M6x35 Piaggio Group · 414838 · Quantity needed: 12 Available

€ 1,48

6 Bearing Available 82521R

Ball bearing 638 Z, 8x28x9 mm Piaggio Group · 82521R Available

€ 23,82

7 Dowel pin Available B015956

Adapter Sleeve 9,5x15 Piaggio Group · B015956 · Quantity needed: 2 Available

€ 1,32

8 Cover Available 483859

Lid Piaggio Group · 483859 Available

€ 2,49
